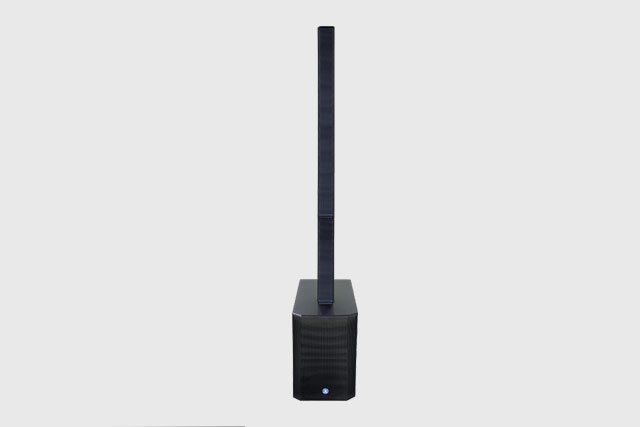

MEGASYS 1
Back
| Model | Megasys 1 |
| Frequency Response | 40Hz – 20KHz (-10dB) |
| Total Amplifier Power | 2000W Continuous / 4000W Program / 8000W Peak Class D |
| Maximum SPL@1M | 134dB |
| Crossover Frequency | 220Hz |
| Dispersion (-6dB) | 120° Horizontal |
| Dimensions (WxHxD) | 430 x 2170 x 610mm (16.93" x 85.43" x 24.02") |
| Net Weight | 48 Kg (105.8 Lbs) |
| Model | Megasys 1 SUB |
| System Type | 15" Active Subwoofer Speaker Cabinet |
| Frequency Response (-6dB) | 40Hz – 210Hz |
| Total Amplifier Power | 2000W Continuous / 4000W Program / 8000W Peak Class D @ 8 Ohms |
| Amplifier, Subwoofer | 1000W Continuous / 2000W Program / 4000W Peak Class D @ 8 Ohms |
| Amplifier, Satellite | 500W+500W Continuous / 2000W Program / 4000W Peak Class D @ 8 Ohms |
| Electronic Protections | Over heat Protection / Short Circuit Protection / Digital Compressor |
| Connections | Input: 1 x Combo-XLR&1/4”, Output: 1 x XLR Thru&Mixout |
| External Controls | MASTER Volume / SUB Volume / Power/Signal/Limiter/Protect Led Indicator / Bluetooth Pair and TWS Connection Switch and Led Indicator |
| Power Supply | 110V-240V ~50/60Hz |
| Enclosure Construction | Plywood Cabinet,Resistant Black Paint, Metal Grille with Foam, Rubber Feet, Integrated side handles |
| Mounting | Smart Mounting and Connection |
| Dimensions (WxHxD) | 430 x 630 x 610mm (16.93" x 24.80" x 24.02") |
| Net Weight | 35 Kg (73.85 Lbs) |
| Model | Megasys 1 TP |
| System Type | 3.5" 2-WAY Passive Crossover Speaker System |
| Output Power | 180W Continuous, 360W Program, 720W Peak |
| Frequency Response (-6dB) | 150Hz-20kHz |
| Impedance | 8 ohms |
| Transducer MID | 6 x 3.5" Woofer , 1.0" (25.4mm) Voice Coil |
| Transducer Treble | 5 x 1" Neodymium Driver, 1.0" (25.4mm) Voice Coil |
| Connector | 4 PIN Smart Mounting and Connection |
| Enclosure Construction | Aluminium Cabinet, Metal Grille, Resistant Paint |
| Dimensions(WxHxD) | 103 x 890 x 130mm (4.05" x 35.03" x 5.11") |
| Net Weight | 7.2Kg (15.9 Lbs) |
| Model | Megasys 1 BM |
| System Type | 3.5" Passive Full Range Speaker System |
| Output Power | 180W Continuous, 360W Program, 720W Peak |
| Frequency Response (-6dB) | 150Hz-20kHz |
| Impedance | 8 ohms |
| Transducer MID | 6 x 3.5" Woofer , 1.0" (25.4mm) Voice Coil |
| Enclosure Construction | Aluminium Cabinet, Metal Grille, Resistant Paint |
| Connector | 4 PIN Smart Mounting and Connection |
| Dimensions (WxHxD) | 103 x 650 x 130mm (4.05" x 25.59" x 5.11") |
| Net Weight | 5.9Kg (13.0 Lbs) |
