| Model |

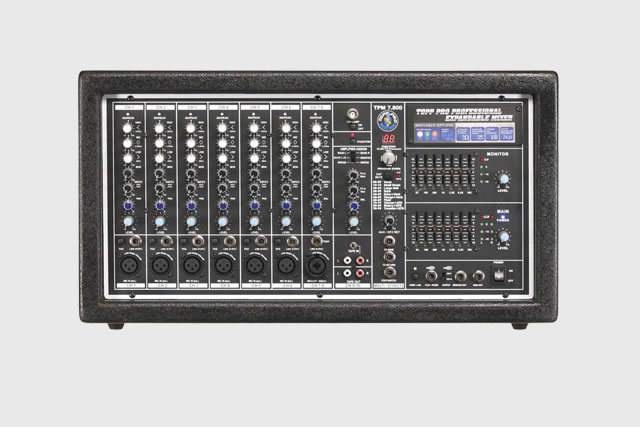

TPM7.800 |
| Mono Channels |
| Microphone Input | Electronically Balanced, discrete input configuration |
| Frequency Response | 20Hz to 220KHz, ± 3dB |
| Distortion (THD/N) | 0.1% at 1KHz |
| Sensitivity | -40dBu |
| SNR | =-80dBu |
| PAD | -20dB |
| Phantom Power | +15V with switch control |
| Line input | Electronically Balanced |
| Frequency Response | 20Hz - 22KHz ± 3dB |
| Distortion (THD/N) | 0.1% at 1KHz |
| Sensitivity range | -20dBu |
|
| Stereo Channels |
| Line input | Electronically Balanced, discrete input configuration |
| Frequency Response | 20Hz - 55KHz ± 3dB |
| Distortion (THD/N) | 0.1% at 1KHz |
| Sensitivity range | -40dBu |
| SNR | =-80dBu |
| Phantom Power | +15V with switch control |
| Line input | Electronically balanced |
| Frequency Response | 20Hz - 22KHz ± 3dB |
| Distortion (THD/N) | 0.1% at 1KHz |
| Sensitivity range | 0dBu | |
| Impedances |
| Microphone Input | 1.4K Ohm |
| All other input | 10K Ohm |
| Tape Out | 1k Ohm |
| All other Out | 120 Ohmios |
|
| Channels EQ (mono) |
| High | ±15dB @ 12Khz |
| Mid | ±12dB @ 2.5Khz |
| Low | ±15dB @ 80Khz |
|
| Channels EQ (stereo) |
| High | ±15dB @ 12Khz |
| Mid | ±12dB @ 2.5Khz |
| Low | ±15dB @ 80Khz |
|
| DSP Section |
| A/D and D/A Converters | 24 Bit |
| DSP resolution | 24 Bit |
| Type of effects | Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flanger, +Verb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR |
| Preset | 100 |
| Controls | 100 position preset selector (10 preset x 10 variations) |
| Mute switch with LED indicator, CLIP LED |
|
| Lamp |
| Pin2 (+) y Pin1 (-) | +12V DC 0.5A |
|
| Main Mix Section |
| Main, Aux, output | 0dB unbalanced, 1/4" connectors |
| Main, Monitor EQ | ±15dB@7 Bands (63,160,400,1K,2.6K,6.3K,16KHz) |
| Noise (BUS Noise) | = -70dB @ 20KHz ~ 22KHz (channel & MAIN level at 0dB, other at minimum, DSP mute) |
|
| Compressor |
| Threshold | -40dB ~ +22dB |
| Comp. / Lim. | Ratio (variable) 2:1 to 8: 1(Limit); attack Time: 1ms; release time: 2s |
|
| Power Section(800 W mode) |
| Power continuous 1KHz, THD 0.5% | 2 x 2300W @ 4 Ohm |
| 2 x 150W @ 8 Ohm |
| EIAJ 1KHz, THD 1% | 2 x 400W @ 4 Ohm |
| Bridge mode | 800W @ 8 Ohm EIAJ |
| 440W @ 8 Ohm RMS | |
| Protection |
| Thermal Protection | Over-temperature power limiting |
| Thermal shutdown |
| Temperature controlled 24V DC fan output |
| Short protection | Short-circuit protection |
| Overload output protection |
| Limiter | Clip limiter |
| Permanent signal limiter |
| High Frequency Protection |
|
| Static Power Consumption |
| No output power State at 230V | 35W | |
| Power Supply |
| Main voltage | 100 - 120VAC 60Hz |
| 220 - 240VAC 50Hz |
| 100 - 120V: T 12A 250V FUSIBLE |
| 210 - 240V: T 6.3A 250V FUSIBLE |
|
| Physical |
| Dimension (W x D x H) | 581 x 280 x 274 mm |
| Weight | NW: 14.3 Kg GW: 17.5 Kg |
|
