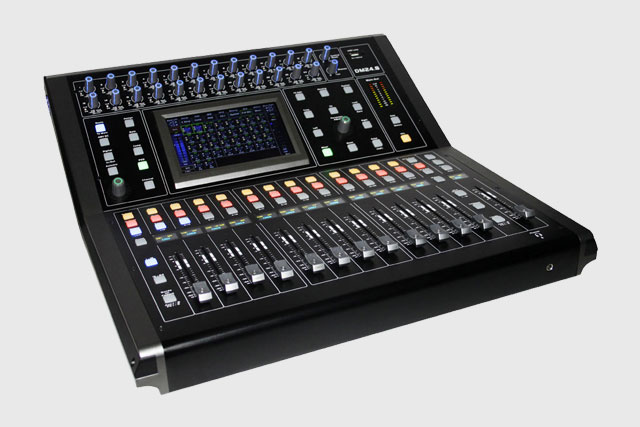

DM24.8
Back
| Microphone input | Electronically balanced |
| Frequency Response to Main Output | 22Hz ~ 20Hz at 0dBu ±1.5dBu |
| Distortion (THD&N) to Main Output | <0.01% at 0dBu 1KHz |
| Gain | 0dBu ~ 50dBu |
| SNR (Signal to Noise Ratio) | 111dB |
| Maximum Input Level | +20dBu ±0.5dBu |
| Phantom Power (+/-3V) | +48VDC |
| Line Input | Electronically balanced |
| Frequency Response to Main Output | 22Hz ~ 22KHz at 0dBu ±1.5dBu |
| Distortion (THD&N) to Main Output | <0.01% at 0dBu 1KHz |
| Gain | -20dBu ~ +30dBu |
| Maximum Input Level (Gain at 0dBu) | +20dBu ±0.5dBu |
| USB stereo inputs | |
| Frequency Response to Main Output | 22Hz ~ 22KHz at 0dBu±1.5dBu |
| Distortion (THD&N) to Main Output | <0.01% at 0dBu 1KHz |
| Maximum Input Level | 10dBu ±0.5dBu |
| Main Outputs | |
| Maximum Outputs Level | +20dBu ±0.5dBu |
| AUX SEND (XLR) | |
| Maximum Output Level | +20dBu ±0.5dBu |
| AUX SEND (1/4" TRS) | |
| Maximum Output Level | +20dBu ±0.5dBu |
| Control Room Outputs | |
| Maximum Output Level | +20dBu ±0.5dBu |
| Headphones Level | |
| Maximum Output Level | +15dBu ±0.5dBu |
| System Crosstalk | |
| Input to Output (at + 0dBu 1KHz) | -88dBu |
| Adjacent Channels (at + 0dBu 1KHz) | -87dBu |
| Noise (Bus noise) | |
| Noise Gate | -91dBu |
| Threshold Range | |
| Attack time | -84dBu ~ +20dB |
| Release time | 0.5mS ~ 200mS |
| Compressor | 10mS~1S |
| Threshold Range | -30dBu - +20dB |
| Attack time | 10mS ~ 150mS |
| Release time | 10mS ~ 1S |
| Ratio | 1:1 to Limit |
| Gain | 0dBu - +24dB |
| EQ | |
| Low (LowPass or LowShelf) | 21Hz ~ 19.2KHz +/- 24dB |
| Low Mid | 21Hz ~ 19.2KHz +/- 24dB |
| High Mid | 21Hz ~ 19.2KHz +/- 24dB |
| High (HighPass or HighShelf) | 21Hz ~ 19.2KHz +/- 24dB |
| Digital Audio | |
| ADC Dynamic Range | 114dB |
| DAC Dynamic Range | 114dB |
| Internal Processor | 32-bit , floating point |
| ADC, DAC bit depth | 24bit |
| Impedances | |
| Microphone input | 6.8 KOhms |
| Line input | 75K |
| Stereo input | 27K |
| All other output | 240 Ohms |
| Operating free-air temperature range | 0ºC ~ 40ºC |
| Storage temperature range | -20ºC ~ 45ºC |
| Dimensions | 528x526x172mm |
