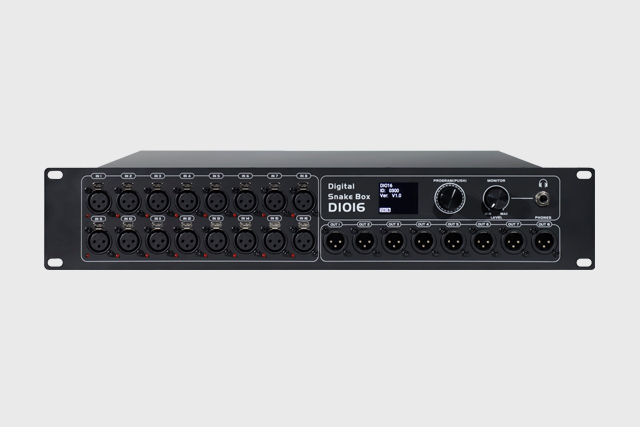

DIO16

Back
Hi-Res Manual
  • 16 Microphone analog inputs / 8 XLR analog outputs
  • Left / right channel headphone output
  • 0dB ~ 50dB input digital gain control
  • 128 RGB x 160 Resolution and 65K color
  • Up to 16 inputs for AES67 / 8 output network real-time transmission of digital signals & multiple expansions
Frequency Response 22Hz ~ 20KHz at 0dBu +1/-2.5dB
Distortion (THD&N) <0.03% at 0dBu 1KHz
SNR (Signal to Noise Ratio) 107dB
Maximum XLR Outputs Level +20dBu ±0.5dB
Phantom Power +48VDC
EIN (Input noise) 125dB
Maximum Headphones Output Level +20dBu ±0.5dB
Input to Output Crosstalk (at +0dBu 1KHz) <-105dBu
Adjacent Channels Crosstalk (at +0dBu 1KHz) <-105dBu
Bus Noise <-89dBu
ADC Dynamic Range 113dB
DAC Dynamic Range 113dB
Internal Processor 32-bit, floating point
ADC bit depth 32bit
DAC bit depth 24bit
Input Impedances 6.8KΩ
Output Impedances 120Ω
Operating free-air temperature range 0°C ~ 40°C
Storage temperature range -20°C ~ 60°C
