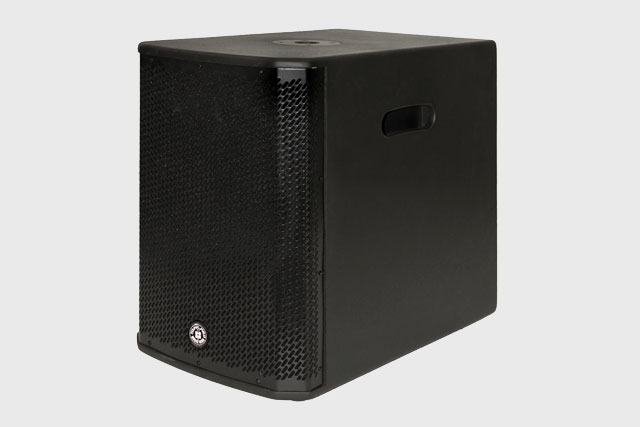

SOHO S12P

Back
Hi-Res Manual
  • Passive Subwoofer
  • Power: 300W Program, 600W Peak
  • Transducer Low: 12" Ferrite Woofer, 2.55" Voice Coil
  • Frequency Response: 45Hz-2.8kHz (-10dB)
SOHOS12P
System Type 12" Passive Subwoofer Speaker
Output Power 300W PROGRAM, 600W PEAK
Sensitivity 122dB Continuous / 125dB Peak
Frequency Response 45Hz-2.8kHz (-10dB)
Impedance 4 ohms
Transducer Low 12" (320mm) Ferrite Woofer, 2.55" (64.5mm) Voice Coil
Connector 4 Pin Terminal Block and 2*NL-4 Speakon Parallel Socket
Enclosure Construction Plywood Cabinet, Resistant Black Paint, Metal Grille
Mounting One metal standard Pole-mount
Dimensions (HxWxD) (W) 350mm x (H) 500mm x (D) 542mm / (W) 13.78" x (H) 19.69" x (D) 21.33"
Net Weight 20.10kg / 44.31 lbs
