SYSTEMS
EVENT Series

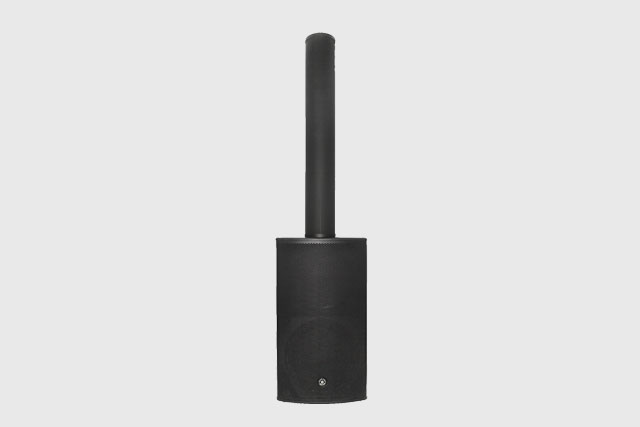

EVENT 4K

Back
Hi-Res Manual Software
  • 24 x 3" Passive Speaker System
  • 4000W System Program
  • 2 x 15" Active Subwoofer
EVENT 4K
Frequency Response 35Hz – 20KHz (-10dB)
Total Amplifier Power 2000W Continuous / 4000W Program / 8000W Peak Class D @ 4 Ohms
Maximum SPL@1M 134dB
Crossover Frequency 200Hz
Dispersion (-6dB) 130° Horizontal
Dimensions (WxHxD) 460 x 2010 x 676mm (18.11" x 79.13" x 26.6")
Net Weight 50.15Kg (110.56 Ibs)
SUB
System Type 2 x 15" Active Subwoofer Speaker Cabinet
Frequency Response (-6dB) 35Hz – 180Hz
Total Amplifier Power 2000 W Continuous / 4000W Program/8000W Peak Class D @ 4 Ohms
Amplifier, Subwoofer 1000 W Continuous / 2000W Program/4000W Peak Class D @ 4 Ohms
Amplifier, Satellite 1000 W Continuous / 2000W Program/4000W Peak Class D @ 4 Ohms
DSP Presets Modes LIVE / Music / SPEECH / DJ
Electronic Protections Over heat Protection/Short Circuit Protection/Digital Compressor
Cooling Temperature-controlled fan
Connections Input: 4 x Combo-XLR&1/4”, 1 x RCA In L&R, 1 x 3.5 Stereo Jack, Output: 1 x XLR Thru&Mixout
External Controls Volume Control / Switch for Input sens / Switch for mode selector / Power ON with Green LED / Limiter with Red LED / Ground Lift / OLED DSP Display and Control / IP Control / MP3 and BT (option)
Power Supply 115V/230V ~50/60Hz Switchable
Enclosure Construction Plywood Cabinet, Resistant Black Paint, Metal Grille with Foam, Rubber Feet, Integrated side handles
Mounting Smart Mounting and Connection
Dimensions (WxHxD) 460 x 830 x 676mm (18.11" x 32.67" x 26.6")
Net Weight 40.47Kg (89.22 Ibs)
SAT
System Type 24 x 3" Passive Speaker System
Output Power 480W Continuous, 960W Program, 1920W Peak
Sensitivity (1W/1M) 99dB
Frequency Response (-6dB) 150Hz-20kHz
Impedance 4 ohms
Transducer Low 3" Neodymium Fullrange Speaker, 0.8" (20.4mm) Voice Coil
Enclosure Construction Aluminium Cabinet, Metal Grille, Resistant Paint
Connector 2 Pin smart connection
Dimensions (WxHxD) φ167 x 1170mm (φ6.57" x 46.06")
Net Weight 9.7Kg (21.38 Ibs)
