TPS i12H

Back
Hi-Res Manual
  • POWER
  • 300W PROGRAM
  • TRANSDUCER LOW
  • 12" Woofer, 2" Voice Coil
  • TRANSDUCER HIGH
  • 1" Driver, 1" Voice Coil

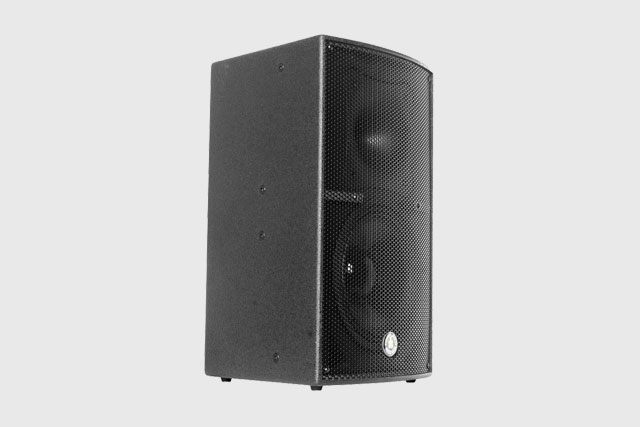

Model TPS i12H
System Type 2-Way Vented Cabinet
Transducer Low 12" Woofer - 2" Voice Coil
Transducer Driver 1” Driver - 1” Voice Coil
Frequency Response 55Hz~20KHz (-6dB)
Crossover Frequency 2.8KHz
Horn Coverage 50º× 50º
Nominal Impedance 8 Ohms
Max SPL 95.6dB / 120.3dB (Max)
Power Rating 150W Continuous / 300W Program
Input Connector 2 × SPK4
Electronic Protection High Frequency Protection
Enclosure Construction Plywood cabinet, resistant black paint, metal grille, rubber feet, two handles
Dimensions (HxWxD) 65 x 44 x 43.5
Net Weight 16
