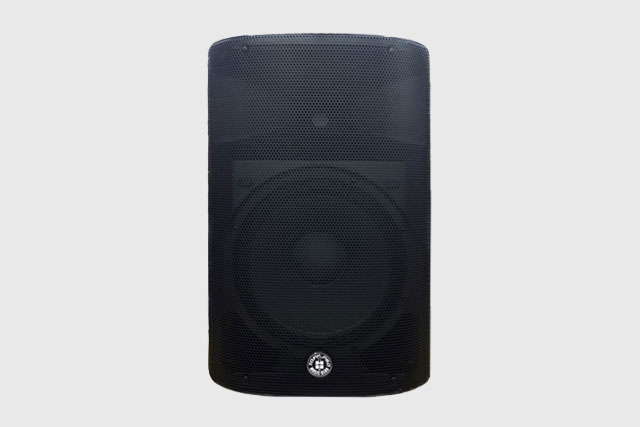

X15A MKII
Back
| Model | X15A MKII |
| System Type | 2-Way Active Ported Loudspeaker |
| Power System | Class D SMPS (Bi-AMP, LF 3500W/RMS + HF 50W/RMS), 1600W Peak |
| Continuous Power | (350W / LF + 50W / HF) |
| Program Power | (700W / LF + 100W / HF) |
| Transducers | 15" (381mm) Woofer - 1" (25mm) Neodymium compression driver, 1" (25mm) |
| Crossover Frequency | 2.2kHz |
| Max SPL at 1m | 125dB (peak), 93dB (continuous) (dB-SPL @ 1m) |
| Frequency Response | 60Hz - 20kHz (-3dB) |
| Frequency Range | 55Hz - 20kHz (-10dB) |
| Horn Coverage H° x V° | 90° horizontal x 60° vertical (nominal) |
| Equalization | Contour Switch, emphasizes low and high frequencies by +3 dB |
| Connector | XLR balanced input (Line / Mic); XLR mix output (Link); IEC power cable input |
| Bluetooth Stereo | Stereo L/R-VOL-Pair-Link Switch |
| Controls | Volume Control knob / Power Switch / Contour Switch / Line & Mic toggle Switch |
| Indicators | Power ON with Green LED, Clip Limiter with Red LED; Bluetooth Pair/Link LED |
| Power | 110V-120V / 50-60Hz or 220V-240V / 50-60Hz |
| Electronic Protections | Thermal / Overload / Analog limiter / Compressor |
| Enclosure Construction | Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top |
| Mounting | Standard 36mm pole socket, wedge monitor |
| Dimensions (HxWxD) | 627 x 386 x 371 mm (24.7" x 15.2" x 14.6") |
| Net Weight | 31.53 lb. / 14.3 kg |
