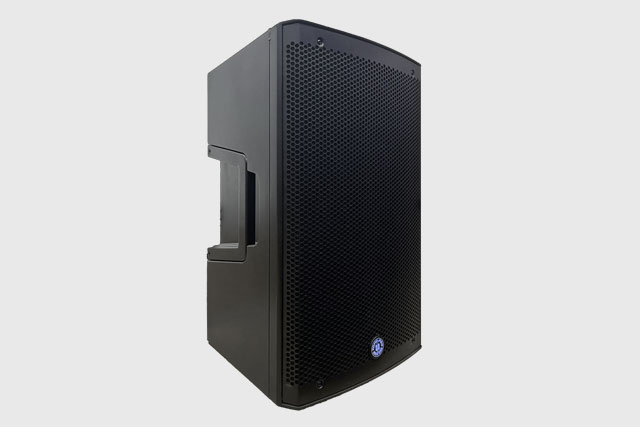

ZP15A
Back
| Model Active | ZP-15A |
| System Type | 2-WAY 15" Active Vented Loudspeaker System |
| Power System | Bi-AMP DSP Processor, 1000W continuous RMS (Class D LF-650W+ HF-350W), 4000W peak (2600W LF + 1400W HF) |
| Continuous Power | LOW: 650W / HIGH:350W |
| Program Power | LOW: 1300W / HIGH:700W |
| Transducer Low | 15" (367mm), cone |
| Transducer High | 1" Throat Compression Driver |
| Crossover Frequency | 2.0kHz |
| Maximum SPL | 134dB (peak), 131dB (continuous) (dB-SPL @ 1 m) |
| Frequency Response | 50Hz – 20kHz (-3 dB) |
| Frequency Range | 43Hz – 20kHz (-10 dB) |
| Horn Coverage | 90° horizontal x 60° vertical (nominal) |
| DSP Preset Modes | LIVE-MUSIC-SPEECH-MONITOR |
| Connectors | 2 x XLR+1/4” (6.35mm) TRS combo inputs (Line/Mic ), 1 x 3.5 Stereo AUX IN, 1 x Stereo BT (app control), 1 x XLR mix output (Link), 1 x IEC power cable input |
| Bluetooth Stereo | Stereo L/R-VOL-Pair-Link Switch (app control) |
| Controls | Volume Control knob, AC Power switch, Line / Mic toggle switch, DSP Preset Switch, BT Pair and Link Switch |
| Indicators | Signal / Clip Limiter LED, Four DSP Mode LEDs, BT Pair-Link LED, Power Switch LED |
| Power | Connection: IEC, Voltage: 110–120V~, 220–240V~, 50/60Hz, switchable, Fuse: 100–120V T10AL AC250V, or 220–240V T5AL AC250V, Consumption: 800W |
| Electronic Protections | Electronic clip, thermal and transducer overdrive protection |
| Enclosure | Trapezoidal, injection-molded, polypropylene with perforated steel grille, 2 x Handles (left and right sides) |
| Mounting / Installation | 36mm standard pole-mount, suspended with integral M10 points, wedge monitor |
| Dimensions (HxWxD) | 680mm x 421mm x 382mm (26.8" x 16.6" x 15.0") |
| Weight | 41.3 lbs / 18.8 kg |
