SPEAKERS
STARK

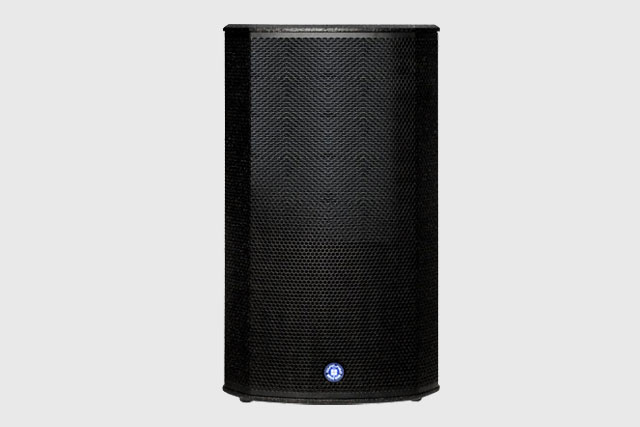

STARK 8A DSP

Back
Hi-Res Manual Software
  • 2400W - 123dB Total System Peak Power
  • DSP Enhanced Bass Response
  • High Efficiency Class D Amplifier
Model STARK 8A DSP
System Type 2-Way Active Vented Loudspeaker System
Transducer Low 8"- 2" voice coil
Transducer High 1" Ferrite Driver - 1" Voice Coil
Power System 600W Continuous (300W/LF+300W/HF) / 1200W Program / 2400W Peak Power, Class D
Horn Coverage H° x V° 90°H x 60°V
Frequency Response (-3dB) 65Hz-20KHz
Frequency Range (-10dB) 55Hz-20KHz
Max SPL (@1m) 123dB at 1m
Connector 1 x XLR/F 1/4" Combo (Mic/Line) Input; 1 x 3.5 Stereo AUX IN, 1 x Stereo BT (App Control); 1 x XLR/M (CH1 Link / Mix out) Output
Controls Volume Control / BT Pair and Link Switch / DSP Preset Switch / AC Power Switch
Indicators Signal/Clip Limiter LED, Four DSP Output Mode LEDs, BT Pair-Link LED, Power Switch LED
DSP Preset Modes LIVE - MUSIC - SPEECH - DJ
Electronic Protections Electronic Clip, Thermal and Transducer Overdrive Protection
Power 110V-120V / 50-60Hz or 220V-240V / 50-60Hz
Enclosure Construction MDF Cabinet, Resistant Black Paint, Rubber Feet, Metal grille with Foam, handles
Mounting One Metal Standard Pole-Mount (36mm)
Dimensions (HxWxD) 482 x 281 x 290 mm (18.9" x 11.1" x 11.4")
Net Weight 14.5 Kg / 31.9 lbs
