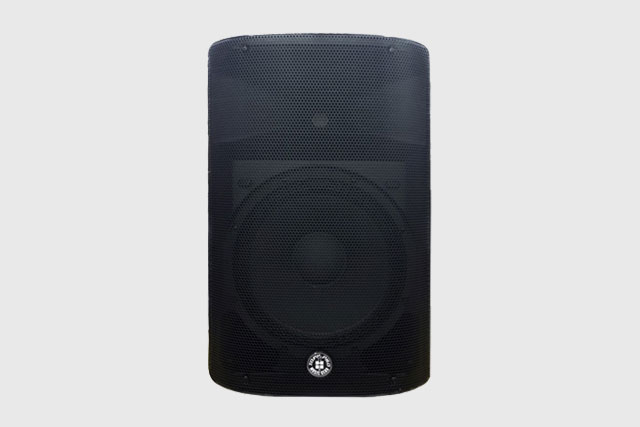

FORZA 15A PLUS

Back
Hi-Res Manual
  • 1660W - 128dB Total System Peak Power
  • 3 Channel Mixer (Mic / XLR / Line / Music Player)
  • 2 band EQ / Master Volume / Mix Out
Model FORZA 15A PLUS
System Type 2-Way Active Plastic Loudspeaker
Power System Class D SMPS (Bi-AMP, LF 350W / RMS + HF 35W / RMS), 1660W Peak
Continuous Power 415W (Low: 350W / High: 65W)
Program Power 830W
Transducer Low 15.0" (382mm) driver, 3.0" (75mm) voice coil, 400W / 4 Ohms, Ferrite
Transducer High 1.0" (25mm) titanium-diaphragm compression driver, 1.35" (35mm) voice coil, 8 Ohms / 20W
Crossover Frequency 2.5KHz
Max SPL 128dB (Peak), 96dB (Continuous) (dB-SPL@1m)
Frequency Response 60Hz-20KHz (-3dB)
Frequency Range 55Hz-20KHz (-10dB)
Horn Coverage 90º horizontal x 60º Vertical (Nominal)
Connectors Input 1-Mic with XLR x 1 & 6.3 jack / Input 2-Line with XLR x 1 & 6.3 jack x 1 & 3.5 jack x 1 / XLR Mix Output
USB Player With USB / MP3 Player, Bluetooth (BT 5.3)
Controls Input 1 & 2 and Master Volume Control / 2 Band EQ-High & Low
Indicators Power ON with Green LED / Clip Limiter with Red LED
Power Connection: IEC / Voltage: 110-120V~, 220-240V~, 50/60Hz, switchable / Fuse: 100-120V T6.3AL AC250V, or 220-240V T3.15AL AC250V / Consumption: 420W
Protection Thermal / Overload / Analog Limiter / Compressor
Enclosure Injection-Molded Polypropylene, Multi-Angle for Main or Monitor Applications, Metal Grille, Rubber Feet, 3 x Handles (Both Side and Top)
Mounting / Installation 36mm Standard Pole-Mount / M10 x 4pcs Flying Points (Optional), Wedge Monitor
Dimensions (HxWxD) 625 x 386 x 370 mm / 24.61" x 15.20" x 14.57"
Net Weight 19.2 Kg / 42.33 Lbs
