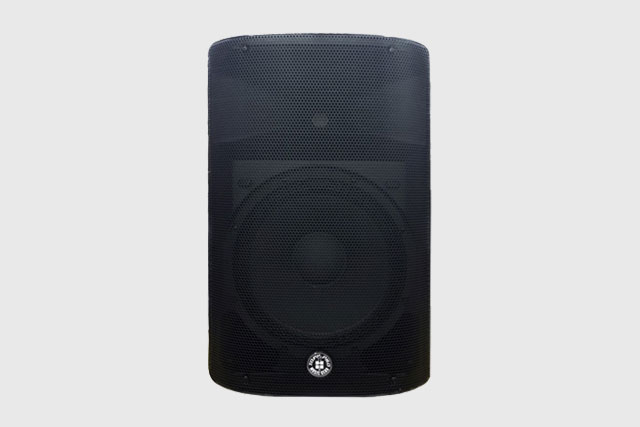

AVANTI 15A PLUS

Back
Hi-Res Manual
  • 500W - 118dB Total System Peak Power
  • 3 Channel Mixer (Mic / XLR / Line / Music Player)
  • 2 band EQ / Master Volume / Mix Out
Model AVANTI 15A PLUS
System Type 2-Way Active Plastic Loudspeaker
Power System Class D SMPS (Bi-AMP, LF 90W / RMS+HF 30W/RMS), 500W Peak
Continuous Power 120W (Low: 90W / High: 30W)
Continuous Power 250W
Low Transducer 15.0" (381mm) driver, 2.0" (51mm) voice coil, 150W / 4 Ohms, Ferrite
High Transducer 1.0" (25mm) titanium-diaphragm compression driver, 1.0" (25mm) voice coil, 8 Ohms /20W
Crossover Frequency 2.5kHz
Max SPL 117dB (Peak), 90dB (Continuous) (dB-SPL@1m)
Frequency Response 60Hz - 20kHz (-3dB)
Frequency Range 55Hz - 20kHz (-10dB)
Horn Coverage 90° horizontal x 60° vertical (nominal)
Connectors Input 1-Mic with XLR x 1 & 6.3jack / Input 2-Line with XLR x 1 & 6.3jack x 1 & 3.5jack x 1 / XLR Mix Output
USB Player With USB / MP3 Player, Bluetooth (BT 5.3)
Controls Input 1 & 2 and Master Volume Control / 2 Band EQ-High & Low
Indicators Power ON with Green LED / Clip Limiter with Red LED
Power Connection: IEC / Voltage: 110-120V~, 220-240V~, 50/60Hz, switchable / Fuse: 100-120V T3.15AL AC250V, or 220-240V T1.6AL AC250V / Consumption: 160W
Protection Thermal / Overload / Analog Limiter / Compressor
Enclosure Injection-Molded Polypropylene, Multi-Angle for Main or Monitor Applications, Metal Grille, Rubber Feet, 3 x Handles (Both Side and Top)
Mounting / Installation 36mm Standard Pole-Mount / M10x4pcs Flying Points (Optional), Wedge Monitor
Dimensions (HxWxD) 625 x 386 x370 mm / 24.61" x 15.20" x 14.57"
Net Weight 14.86 Kg / 32.80 lbs
