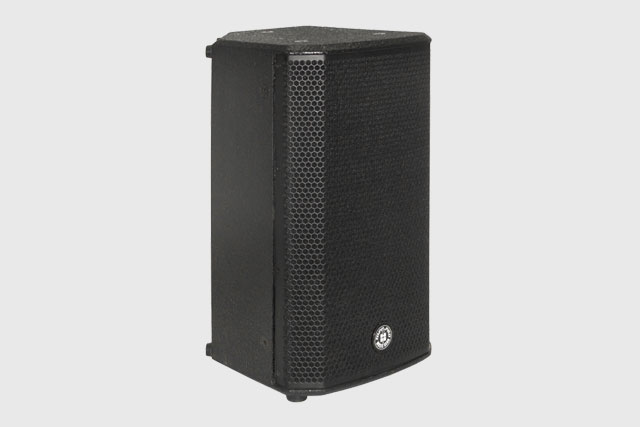

KS HD10A

Back
Hi-Res Manual
  • Power 2000W Program
  • Transducer Low 10" Woofer, 2.5" Voice Coil
  • Transducer High 1" exit, 1.75" Voice Coil
Model Active KS HD10A
System Configuration Multi-purpose, 2-way Active Loudspeaker with DSP/OLED
LF Transducer 10" (254mm) Woofer, 2,5" Voice coil
HF Transducer 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
Frequency Response (-6 dB) 50Hz-20KHz
Frequency Range (-10 dB) 45Hz-20KHz
Maximum Rated SPL 128dB Peak
Crossover Frequency At 1.8KHz with 24dB filter slope, Linkwitz-Riley Type
Power 2000W PROGRAM / 4000W PEAK
Controls Power / 3 x Level / Rotary encoder
Indicators Monochrome OLED Display 1.65" x 1.1" (42.04mm x 27.22mm), 2 x Power LED (front and rear), 3 x Input Signal LED, Input 1 MIC selected LED, Input 2 HI-Z selected LED, Limiter active LED
Connectors 2 x locking XLR/F 1/4" combo (Mic/Line Input and Hi-Z/Line Input), 1 x 3.5mm TRS (Stereo Input), 1 x XLR/M (Mix Output), 1 x locking IEC power connector
AC Power Input 110-120V~50/60Hz or 220-240V~50/60Hz Switchable
Enclosure Plywood cabinet,resistant black paint, rubber feet, metal handle, metal grille with black foam
Attachment Points One metal standard pole-mount, 10 x M10 threaded inserts plus integrated Pull-Back
Dimensions (HxWxD) 510 x 299 x 310 mm / 20.08 x 11.77" x 12.21"
Net Weight 14.13 kg / 31.15 lbs
