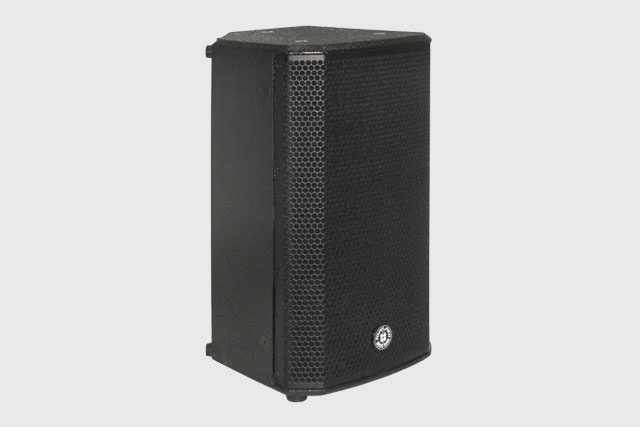

KS HD8A

Back
Hi-Res Manual
  • Power 2000W Program Power
  • Transducer Low 8" Woofer, 2" Voice Coil
  • Transducer High 1" exit, 1.75" Voice Coil
Model Active KS HD8A
System Configuration Multi-purpose, 2-way Active Loudspeaker with DSP/OLED
LF Transducer 8" (203mm) Woofer, 2" Voice coil
HF Transducer 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
Frequency Response (-6 dB) 60Hz-20KHz
Frequency Range (-10 dB) 55Hz-20KHz
Maximum Rated SPL 126dB Peak
Crossover Frequency At 1.8KHz with 24dB filter slope, Linkwitz-Riley Type
Amplifier Class D RMS: 500W (LF), 500W (HF)
Controls Power / 3 x Level / Rotary encoder
Indicators Monochrome OLED Display 1.65" x 1.1" (42.04mm x 27.22mm), 2 x Power LED (front and rear), 3 x Input Signal LED, Input 1 MIC selected LED, Input 2 HI-Z selected LED, Limiter active LED
Connectors 2 x locking XLR/F 1/4" combo (Mic/Line Input and Hi-Z/Line Input), 1 x 3.5mm TRS (Stereo Input), 1 x XLR/M (Mix Output), 1 x locking IEC power connector
AC Power Input 110-120V~50/60Hz or 220-240V~50/60Hz Switchable
Enclosure Plywood cabinet,resistant black paint, rubber feet, metal handle, metal grille with black foam
Attachment Points One metal standard pole-mount, 10 x M10 threaded inserts plus integrated Pull-Back
Dimensions (HxWxD) 460 x 273 x 302 mm / 18.11" x 10.75" x 11.89"
Net Weight 12.93 kg / 28.51 lbs
