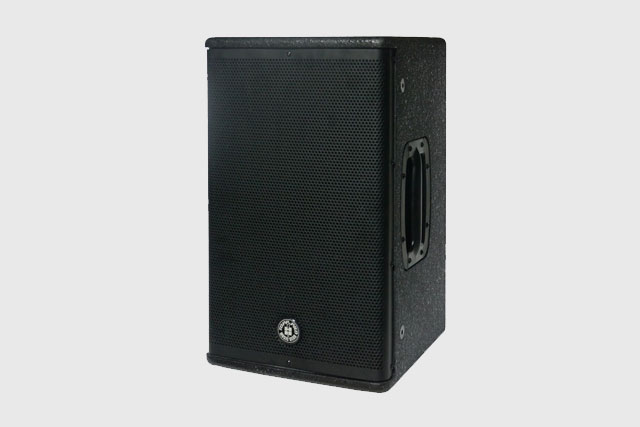

KS CS8A

Back
Hi-Res Manual Software
  • POWER
  • 1600W PROGRAM
  • TRANSDUCER LOW
  • 8" Woofer, 2" Voice Coil
  • TRANSDUCER HIGH
  • 1" Driver, 1.75" Voice Coil
Model Active KS CS8A
System Type 2-Way Active Vented Speaker with DSP
Transducer Low 8" Woofer, 2" voice coil
Transducer Driver 1" Compression Driver, 1.75" Voice Coil
Frequency Response (-6dB) 60Hz - 20KHz
Crossover Frequency At 1.8K Hz with 24dB filter slope, Linkwitz-Riley Type
Max SPL 124dB Max.
Power Rating 1600W (PROGRAM) / 3200W (PEAK)
Input Connector Line / Mic - Combo / Link-XLR
DSP Presets Flat / Loudness / User (Customer Sound)
Line Input Combo Connector -6dBu
External Controls Volume Control / Power ON with Green LED / Clip Limiter with Red LED / Ground Lift / Switch for Input Sens / Switch On for front Led / USB
Electronic Protections Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
Power Supply 115V/230V Switchable
Enclosure Construction Plywood cabinet, resistant black paint, metal grille with black foam, rubber feet, plastic handles
Mounting One metal standard pole-mount, 10xM10 Flying Points
Dimensions (HxWxD) 460 x 276.4 x 300mm / 18.11" x 10.89" x 11.81"
Net Weight 15.93kg / 35.05Ibs
Volume 2.554CFT
