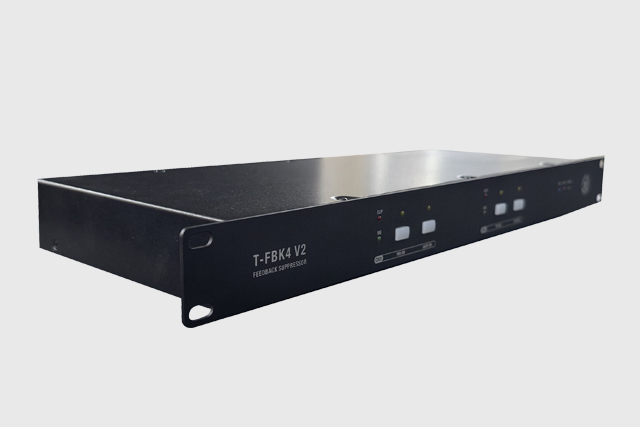

T-FBK4 V2
Back
- 4 XLR & 4 TRS balanced inputs
- 2 XLR & 2 TRS balanced outputs
- Can supply 48V phantom power
- Available to adjust the feedback supression Manually or automatically
- Own the GATE function and the threshold value can be adjusted
- Can control anyone of dual channels individually, 8 dynamic & 8 static supression points configurated in each channel
- Available to use PC software to configurate all functions. And related configuration can be saved for future modification
- Two optional connection ways (through TCP/IP or USB) to PC for LAN control
| Microphone input | Electronically balanced |
| Frequency Response to Main Output | 100Hz-20KHz at 0dBu + 1/-2.5 dB |
| Distortion (THD&N) to Main Output | <0.03% at 0dBu 1 KHz |
| Gain | 0dB -36dB |
| Phantom Power | +48VDC +/-3V |
| . | |
| Line input | |
| Frequency Response to Main Output | 100Hz-20KHz at 0dBu + 1/-2.5 dB |
| Distortion (THD&N) to Main Output | <0.03% at 0dBu 1 KHz |
| Gain | -20dB -+16dB |
| . | |
| SNR (Signal to Noise Ratio) | 107dB |
| . | |
| System Crosstalk | |
| Adjacent Channels (at +0dBu 1 KHz) | -87dBu |
| . | |
| Noise(Bus noise) | -87dBu |
| . | |
| Digital Audio | |
| AD/DA Dynamic Range | 114dB |
| Internal Processor | 24-bit , floating point |
| ADC,DAC bit depth | 24-bit |
| . | |
| Impedances | |
| Microphone input | 3.3 KOhms |
| Line input | 19 KOhms |
| Output | 120 Ohms |
| . | |
| Operating temperature range | 0ºC - 40ºC |
| Storage temperature range | `-20ºC - 60ºC |
