THA-6

Back
Hi-Res Manual
  • Headphone Amplifier
  • 6 Channel, Servo Balanced Input
  • 4 Meter LEDs

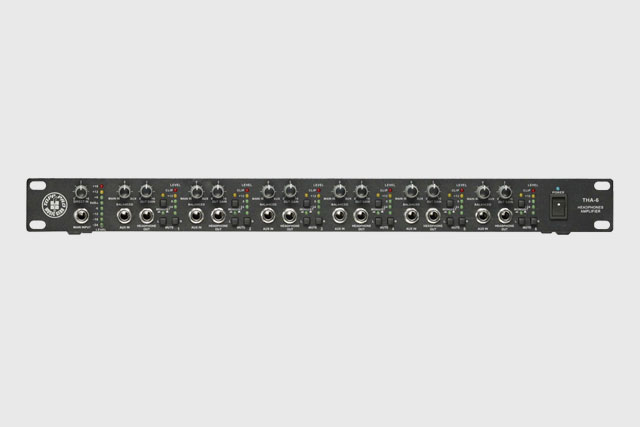

Model THA-6 6 CHANNEL HEADPHONE AMPLIFIER
Main Input Connectors: XLR and 1/4" jack
Type: HF filtered, servo balanced input
Impedance: 50 kOhms balanced, 25 kOhms unbalanced
Max.input level: +21 dBu balanced and unbalanced
CMRR: typ.40 dB, >55 dB @ 1kHz
AUX IN andDIRECT IN input Connectors: 1/4" TRS (tip=left, ring=right, sleeve=ground)
Type: Unbalanced
Impedance: 25 kOhms Unbalanced
Max.input level: +21 dBu unbalanced
CMRR: typ,40 dB, >55 dB @ 1 kHz
OUTPUT Connectors: XLR and 1/4" Jack
Type: Balanced /Unbalanced
Impedance: Dependent on the input impedance
Max. output level: +21 dBu Balanced and Unbalanced
SYSTEMSPECIFICATIONS Frequency response: 10 Hz to 50 kHz,+/-3 dB
Noise: >90 dB, Unweighted, 22 Hz to 22 kHz(>95 dB@+4 dBu)
THD: 0.005% typ.@+4 dBu, 1kHz, Gain 1
POWER AMPLIFIER Max.output power: +21 dBm
Min.output impedance: 100 Ohms
MAX. Gain: +20dB
FUNCTIONCONTROLS Input level: Variable
Balanced per channel: Mix between aux and main signal
Output level per channel: Variable
FUNCTIONSWITCHES Left mute: Mute left signal of the respective channel
Right mute: Mute right signal of the respective channel
Mode: Switch channel to mono
INDICATORS Input level: 8-digit LED display:-24/-18/-12/-6/0/+6/+12/+18dBu
Output level: 4-digit LED display:-24/0/+12/CLIP
POWER SUPPLY Mains voltage: USA/Canada: 120V~, 60Hz - UK/Australia: 240V~,50Hz - Europe: 230V~,50Hz
Power consumption: 40 W
Mains connection: Standard IEC receptacle
Fuse: 95-120V~: T500mA L/210-240V~: T315mA L
PHYSICAL Dimension (WxDxH): 483 x 217 x 44mm (19" x 8.84" x 1.7")
Net weight: 2.9kg/6.39 lbs
