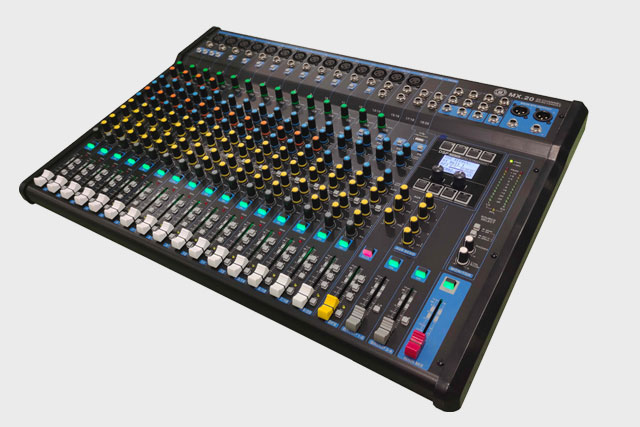

MX.20

Back
Hi-Res Manual
  • Input Channels
  • Mono [MIC/LINE]: 12, Mono/Stereo [MIC/LINE]: 4, Stereo [LINE]: 4
  • Output Channels
  • STEREO OUT: 2, MONITOR OUT: 1, PHONES: 1, AUX SEND: 4, GROUP OUT: 4
  • On-board processors
  • 24 programs, Parameter Control: 2, Foot switch: 1
MX.20
Mixing capability On-board processors: 24 programs, PARAMETER control: 2, FOOT SW: 1
I/O Phantom Power +48V / Digital: USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels Mono [MIC/LINE]: 12, Mono/Stereo [MIC/LINE]: 4, Stereo [LINE]: 4
Output Channels STEREO OUT: 2, MONITOR OUT: 1, PHONES: 1, AUX SEND: 4, GROUP OUT: 4
Bus Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
Input Channel Function HPF: 120 Hz, 12 dB/oct (Mono/Stereo: MIC only) / COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec / EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 12 kHz shelving / EQ MID: Gain: +12 dB/-12 dB, Frequency: Mono 100 Hz – 8 kHz peaking, Stereo 2.5 kHz peaking / EQ LOW: Gain: +15 dB/-15 dB, Frequency: 80 Hz shelving / PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping / Level Meter 2x
Total harmonic distortion 0.03 % @ +0dBu (20 Hz to 20kHz), GAIN knob: Min.
Frequency response +0.5 dB/-1.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min.
Hum & noise level Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) / Residual output noise: -100
Crosstalk -85 dB
Power requirements AC 100 – 240 V, 50 / 60 Hz
Power consumption 28 W
Dimensions W: 620.4mm / H: 111.4mm / D: 439.5mm
