| Model |

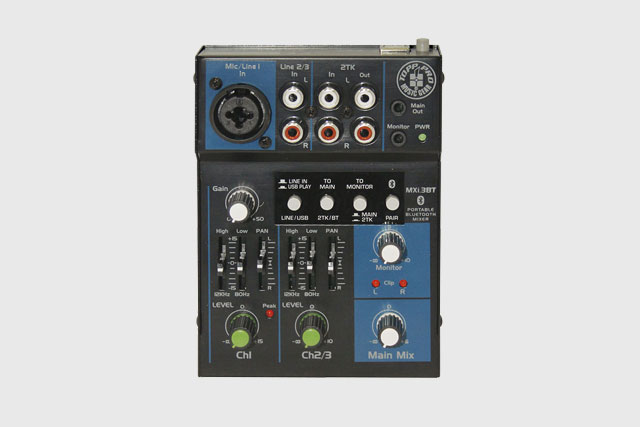

MXi.3BT |
| Frequency Response |
| Mic Input to any Output |
10 Hz to 40 kHz(0, -1dB) |
| (Gain @ 0 dB, Rated output level) |
10 Hz to 400 kHz(0, -3dB) |
|
| Distortion (THD&N) |
| Mic Input to MAIN Output(Gain @ 0 dB,
Rated output level @ 20 Hz-20 kHz bandwidth) |
0.01% (A-weighted) |
|
| MIC EIN (Equivalent Input Noise) |
| Input: Channel INPUT MIC (Rs = 150 Ohm
Gain @ Max.,20 Hz-20 kHz bandwidth) |
-118dBu (A-weighted) |
|
| CMRR |
| Mic in to main out(Gain @ Max.,@ 1 kHz)70dB |
70dB |
|
| Input Gain (20 Hz-20 kHz) |
| Mono Channel |
MIC: 0 to 48dB, LINE: -35 to +15dB |
| Stereo Channel |
-- |
|
| Attenuation (Crosstalk) (20 Hz-20 kHz) |
Line in, 1/4" TRS Main Out,1 kHz relative to 0 dBu, 22 Hz ~ 22 kHz Filter, Gain @ unity.
Main Mix knob/fader @ -8 -79dBu (A-weighted)
Channel Level knob/fader @ -8 -79dBu (A-weighted) |
| Rated Output Level |
| Main, Aux, Control Room output (all knob/fader @ 0 dBu,1 kHz) |
0dBu |
|
| Maximum Output Level |
| Main, Aux, Control Room output
(all knob/fader@ 0 dBu,1 kHz, 22 Hz 22 kHz Filter,THD @ 1%) |
+17dBu |
|
| Maximum Voltage Gain(EQ and PAN/BAL knob@ 0 dB, Other all knob or fader @ max,DFX mute,1 kHz, Rs=600 Ohm) |
| Mono Channel MIC INPUT
MAIN OUT (3.5mm jack stereo) |
69dBu |
| Mono Channel MIC INPUT
Monitor (3.5mm jack stereo) |
78dBu |
| Mono Channel MIC INPUT
TAPE OUT (RCA) |
69dBu |
| Mono Channel LINE INPUT
MAIN OUT (3.5mm jack stereo) |
53dBu |
| Stereo Channel LINE INPUT
MAIN OUT (3.5mm jack stereo) |
16dBu |
| TAPE INPUT
MAIN OUT (3.5mm jack stereo) |
6dBu |
| TAPE INPUT
Monitor (3.5mm jack stereo) |
9dBu |
|
| Main mix Noise (20 Hz-20 kHz bandwidth) |
| MAIN OUT (all knob/fader @ 0 dBu, 22 Hz-22 kHz Filter,Gain @ unity) |
| Main Mix knob/fader @ -8 ,Channel Level knob/fader @ -8 |
-120dBu (A-weighted) |
| Main Mix knob/fader @ 0dB, Channel Level knob/fader @ -8 |
-100Bu (A-weighted) |
| Main Mix knob/fader @ 0dB, Channel Level knob/fader @ 0dB |
-98dBu (A-weighted) |
|
| Equalization |
| (Mono channels) |
Stereo Channels |
| High +/-15 dB @12 kHz |
High +/-15 dB @12 kHz |
| Low +/-15 dB @80 Hz |
Low +/-15 dB @80 Hz |
|
| PEAK Indicator |
|
| VU Meters |
| Main Left and Right (1-segment) |
Clip +15dBu |
|
| Impedance |
| Microphone Input |
2.6k Ohms |
| Line Input |
10k Ohms |
| Tape Input |
10k Ohms |
| Main Outputs |
120 Ohms |
| Phones Output |
120 Ohms |
| Tape Output |
1K Ohms |
|
| USB SECTION |
| USB Interface |
USB 2.0 full speed compliant |
| ADC & DAC |
16-Bit Delta-Sigma,44.1kHz
Sampling Rates |
| Operating System |
Windows 2000,XP or higher,
Mac OS 9.0.4 or higher, 10.Xor higher |
|
| Phantom power |
| Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced 1=GND, 2=HOT, 3=COLD) |
+20V |
|
| Power supply |
| Adaptor |
DC5V, 500mA |
| USB Connection |
DC5V, 500mA |
|
| Power Consumption |
2.5W |
| Physical |
| Dimension (L*W*H) |
98 mm*136 mm*34 mm |
| Weight |
0.48Kg (1.1 lbs) |
|
