| Model |

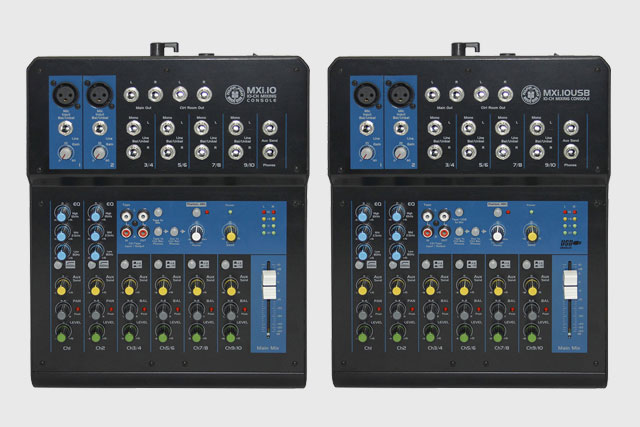

MX.i10 / MXi.10USB |
| Frequency Response |
| Mic Input to any Output (Trim at 0 dB) |
| +0, -1 dB |
10 Hz to 150 kHz |
| -3 dB |
10 Hz to 200 kHz |
|
| Distortion |
| THD and SMPTE IMD |
20 Hz to 20 kHz |
| Mic Input to Main Output |
<0.005% @+4 dBu output |
|
| Noise |
| 20 Hz to 20 kHz BW (150 Ohm source impedance) |
| Equivalent Input Noise (EIN) |
-129 dBu |
| Residual Output Noise |
| Main, Ctrl Room, Phones |
-106 dBu |
|
| CMRR |
| Mic In |
60 dB@1 kHz, Gain@ maximum |
|
| Crosstalk |
| Adjacent Inputs or Input to Output |
-90 dB@1 kHz |
| Input Gain Conrol Range |
0 dB to 50 dB |
| Phantom Power |
+48 VDC |
|
| Equalization |
| High |
+/-15 dB@12 kHz |
| Mid (except for MX.5) |
+/-12 dB@2.5 kHz |
| Low |
+/-15 dB@80 Hz |
|
| Mixer Rated Output |
| Main, Aux, Control Room |
+4 dBu |
| Maximum Rated Output |
+22 dBu |
|
| Maximum Input Levels |
| Mic Input |
+12 dBu, Gain @+10 dB |
| Line Input |
+30 dBu, Gain @+10 dB |
| Tape Input and Aux Return |
+22 dBu |
|
| Input Impedance |
| Mic Input |
2.6 kOhm , balanced |
| Line Input |
20 kOhm , balanced |
| Stereo Aux Returns |
20 kOhm , balanced |
| CD/Tape In |
24 kOhm , unbalanced |
|
| Output Impedance |
| Main |
240 Ohm , balanced; 120 Ohm, unbalanced |
| Ctrl Room, Aux Sends |
120 Ohm |
| Tape Output |
1 kOhm |
| Phones Output |
25 Ohm |
|
| VU Meters |
| Main Left and Right (4-segment) |
Clip (+18), +6, 0, -20 (0 LED=0 dBu) |
|
| AC Power Requirements |
| External Power Supply Output |
18.5 VAC 2@150 mA (3-pin AC power connection) |
| External Power Supply AC Input |
| U.S. |
120 VAC, 60 Hz |
| Europe |
240 VAC, 50 Hz |
| Japan |
100 VAC, 50/60 Hz |
| Korea |
220 VAC, 60 Hz |
|
| Physical |
| Dimensions (H x W x D) |
| MX.5 |
41 x 133 x 203 mm (1.6" x 5.2" x 8.0") |
| MX.6 |
203 x 133 x 41 mm (8.0" x 5.2" x 1.6") |
| MX.10 |
41 x 188 x 252 mm (1.6" x 7.4" x 9.9") |
| MX.12 |
41 x 272 x 259 mm (1.6" x 10.7" x 10.2") |
| Net Weight |
| MX.5/MX.6 |
0.7 Kg (1.6 lb)/1.2 Kg (2.7 lb) |
| MX.10/MX.12 |
1.4 Kg (3.1 lb)/1.8 Kg (3.9 lb) |
|
