Power Specifications (tolerance +/-5%) |

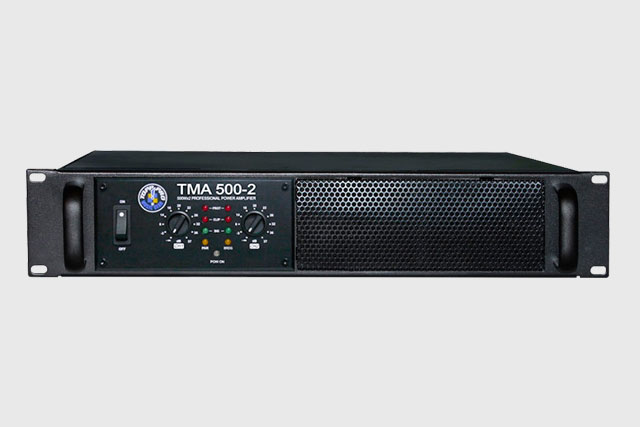

TMA500-2 |
Stereo Mode (Both Channels Drive) |
2 ohms (EIAJ) 750W*2 |
4 ohms (RMS) 500W*2 |
8 ohms (RMS) 300W*2 |
|
Bridge Mono Mode |
8 ohms (RMS) 1000W |
4 ohms (EIAJ) 1500W |
|
Electrical Specification |
|
Input Sensitivity (Limit Off) |
0.9-1.1V(0+/-1dBv) |
Input Impedance |
20k ohms balanced or 10k Ohms unbalanced |
Frequency Response (at 10dB Rated Output Power) |
20Hz ~ 20KHz(+0/-1dB) |
Voltage Gain |
33+/-0.5dB |
THD+N (Ref.1K 1/8 Rated Power,A-Weighted) |
<0.1% |
S/N rate (Ref. Rated Power, A-Weighted) |
>100dB |
Crosstalk (Below Rated Power) |
>70dB |
Damping Factor(1K 8 ohms) |
>500 |
Power/Output Circuitry |
Switching Power Class AB |
General Specifications |
|
Protections |
Full short circuit, open circuit, thermal, ultrasonic, and RF protection stable into reactive or mismatched loads, turn ON/OFF, muting, tried crowbar. |
Controls |
Front: AC switch(soft-start), Input level control for each channel / Rear: stereo/ parallel/bridged selector, limit ON/OFF selector |
Indicators |
SIGNAL: 2 green LED, CLIP: 2 red LED, POWER: 1 Blue LED /PROTECTION: 2 red LED, BRIDGE: 1 Yellow LED, PARALLEL: 1 Yellow LED |
Connectors |
INPUT : Active balanced XLR or TRS JACK /OUTPUT: "Touch-proof" binding posts and speak-on jacks |
Power Supply |
Available for 80-135V or 160~270V AC 50/60 Hz |
Dimensions (mm) |
483 (W) x 460 (D) x 88.8 (H) |
Weight |
9kg |
