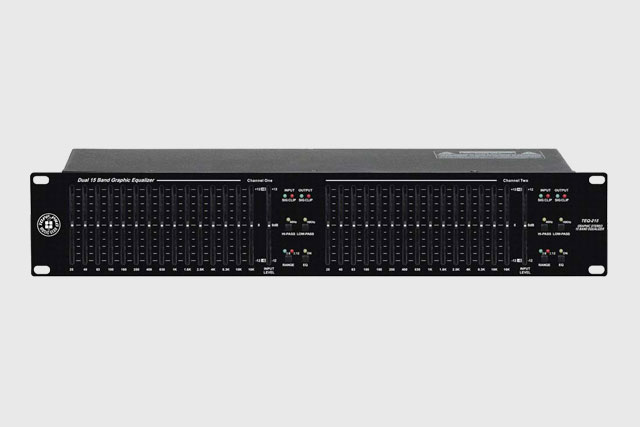

TEQ-215

Back
Hi-Res Manual
  • 2 x 15 Band Graphic Equalizer
  • In / Out XLR & TRS
  • 2 Rack Units
Model TEQ-215 2 X 15 BAND GRAPHIC EQ
Type 2 x 15 Band: 1/3 octave, ISO spacing (2H)
Slider travel 60 mm with positive centre detent
Range ±6dB or ±12dB selectable
Input Connections Active balanced XLR and 1/4” TRS
Unbalanced RCA
Input Impedance 20kOhm (balanced)
15kOhm (unbalanced)
Maximum input level 14dBu
Output connections Active balanced XLR and 1/4” TRS
Unbalanced RCA
Input Impedance 20kOhm (balanced)
15kOhm (unbalanced)
Output Impedance <600 Ohm
High pass filter 40Hz (12dB/oct)
Low Pass filter 16kHz (12dB/oct)
Frequency Response 20Hz to 50KHz - 1.5dBu
THD +N% <0.01% (@ 1KHz, all VR at middle position)
S/N Ratio >110dB
Power Supply 95V-120V AC - 60Hz
220V - 240V - 50Hz / 60Hz
Consumption 9W
Dimensions 483 (W) x 220 (D) x 88 (H) (19” x 8.66” x 3.5”)
