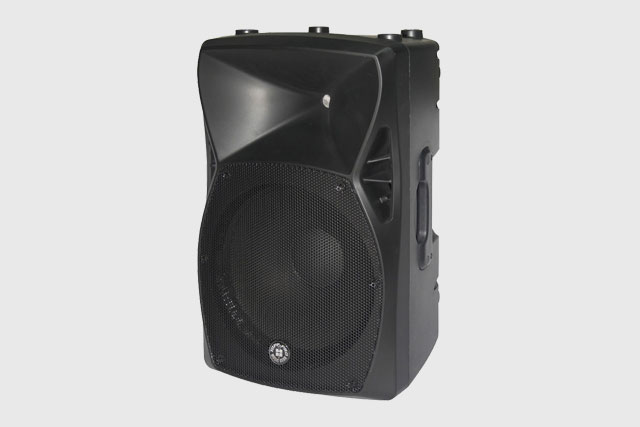

X 12A
Back
| Model Active | X12A |
| System Type | 2-Way Active Vented Speaker |
| Transducer Low | 12" Woofer, 2"voice coil |
| Transducer Driver | 1" NEO Driver, 1" Voice Coil |
| Horn Coverage H° x V° | 90°H x 60°V |
| Frequency Response (-6dB) | 60Hz-20KHz |
| Crossover Frequency | 2100 Hz |
| Max SPL | 118dB Max. |
| Power Rating | 400W (PROGRAM) / 800W (PEAK) |
| Connector | Line In & Link With XLR |
| External Controls | Volume Control / Power ON with Green LED / Contour / MIC & Line Switch / Clip Limiter with Red LED / Ground Lift |
| Electronic Protections | Thermal / Overload / Analog limiter / Compressor |
| Power Supply | 110V/240V Switchable |
| Enclosure Construction | Plastic cabinet, Trapezoidal & Monitor shape, Metal grille, Rubber foot, 3 x Handle (both side and Top) |
| Mounting | 36mm standard pole-mount / M10 x 4pcs Flying Points (Optional) |
| Dimensions (HxWxD) | 607 x 380 x 337mm |
| Net Weight | 13.75kg |
| Volume | 4.8CFT |
