X 15

Back
Hi-Res Manual
  • POWER:
  • 400W PROGRAM
  • TRANSDUCER LOW:
  • 15" Woofer, 2" Voice Coil
  • TRANSDUCER HIGH:
  • 1" Neodymium Driver, 1" Voice Coil

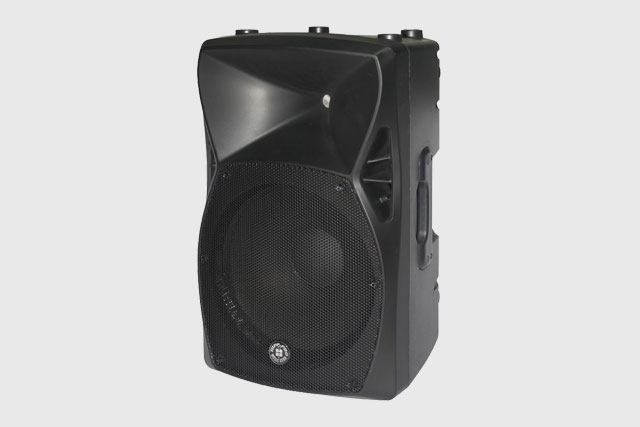

Model Passive X15
System Type 2-Way Vented Passive Speaker Cabinet
Continuous Power 200 Watts
Peak Power 800 Watts
Max SPL (1m/1W) 121dB Max
Frequency Response 50Hz-20kHz (-6dB)
Crossover Frequency 2.5kHz
Protection PTC Protection for HF
Impedance 8 Ohms
Transducer Low 15" Woofer, 2" Voice Coil
Transducer High 1" Neodymium Driver, 1" Voice Coil
Enclosure Construction Plastic cabinet, Trapezoidal & Monitor shape, Metal grille, Rubber feet, 3 x Handles (Top and sides)
Mounting 36mm standard pole-mount / 4 x M10 flying Points (Optional)
Dimensions (HxWxD) 625 x 386 x 366mm
Net Weight 14.86kg / 32.8Ibs
Volume 5.91 CFT
