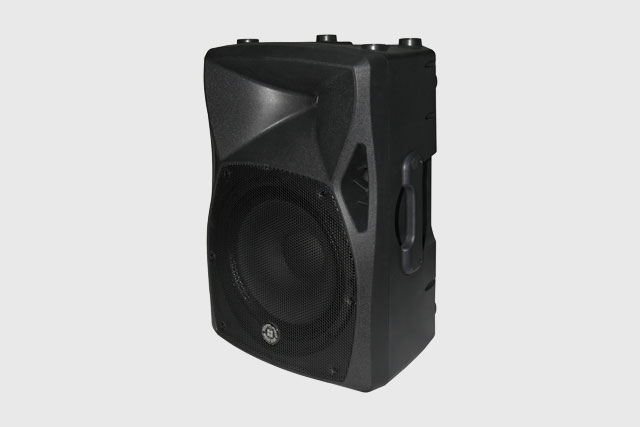

FORZA 12A

Back
Hi-Res Manual
  • 1660W Peak Power
  • 12" Woofer - 1" Titanium Driver
  • Built in MP3 USB / Wireless Player
Model Active FORZA 12A
System Type 2-Way Active Vented Speaker
Transducer Low 12" Woofer, 3"voice coil
Transducer Driver 1" Driver, 1.35" Voice Coil
Horn Coverage 90°H x 45°V
Frequency Response (-6dB) 55Hz-20KHz
Crossover Frequency 2.5K Hz
Max SPL 126dB Max.
AMP Power Output 415W Continuous ( Bi-AMP , LF 350W/RMS + HF 65W/RMS), 1660W Peak
USB Player With USB & Micro SD CARD
Connector INPUT 1 - Mic With XLR x 1 & 6.3 Jack x 1 / INPUT 2 - Line With XLR x 1 & 6.3Jack x 1 & 3.5 Jack x 1
External Controls Input 1&2 and Master Volume Control / 2 Band EQ-High & Low / Power / ON with Green LED / Clip Limiter with Red LED
Electronic Protections Thermal / Overload / Analog limiter / Compressor
Power Supply 110V/240V Switchable
Enclosure Construction Plastic cabinet,Trapezoidal & Monitor shape,Metal grille, Rubber foot, 3 x Handles (both side and Top)
Mounting 36mm standard pole-mount/ M10 x 4 Pcs Flying Points (Optional)
Dimensions (HxWxD) 458 x 411 x 683mm
Net Weight 18.2Kg
