KS

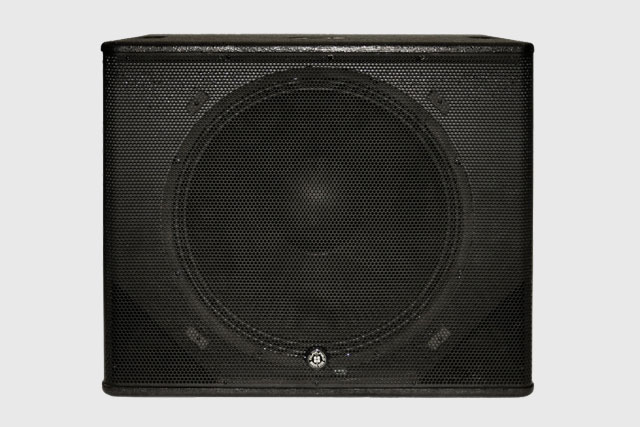

KS21A

Back
Hi-Res Manual
  • POWER
  • 2000W PROGRAM
  • TRANSDUCER LOW
  • 21" Woofer, 4" Voice Coil
  • MAX SPL
  • 130dB
Model Active KS21A SUB
System Type Active Subwoofer
Power Rating 1000W Continuous Class D, 2000W PROGRAM, 4000W PEAK
Transducer Low 21" Woofer, 4" Voice Coil
Max SPL 130dB
Frequency Response (-6dB) 40Hz to 120Hz
DSP PROCESSING Crossover 60Hz / 80Hz / 100Hz
Connectors Input: Left Mono Combo / Right XLR-F / Output: Left Mono /Right XLR-M / LINK - Left / Mono XLR-M
External Controls Volume / DSP Processing / CLIP LIMIT LED / Power ON with Green LED / HPF-80Hz for L-R Satellite or by pass / Ground Lift
Electronic Protections Thermal / Convection-Fan / Overload / Limit / Compressor
Power Supply Neutrik POWER CON® connector, 110-240V~50/60Hz Switchable
Enclosure Construction Plywood cabinet, resistant black paint, metal grille with black foam, rubber feet, double handle
Mounting One metal standard pole-mount
Dimensions (H*W*D) 29.3" (745mm) x 24.6" (625mm) x 22.8" (578mm)
Net weight 48Kg /105.8lbs
