R1

Back
Hi-Res Manual
  • Receiver or Multi receiver Operating Band: ISM 2.4GHz free band
  • GFSK digital modulation/demodulation
  • External antenna, 30 meters transmit distance in open place

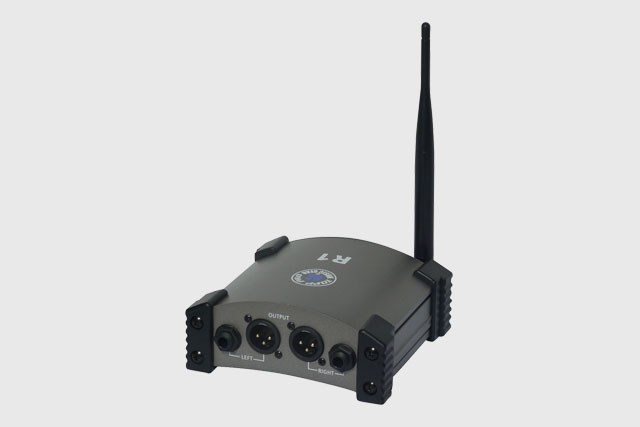

Model R1
Power Supply AC 9V ADAPTOR
Frequenqy 2404 - 2471MHz
Channel 25
Modulation GFSK
Receive Sensitivity (R1) -84dBm (Min)
Transmit Power (T2) 6dBm
Output Level (R1) +18dBu (BAL Max.)
lnput Level (T2) +5dBu
Bandwidth >=1.8MHz
Frequenqy Response 20 - 20kHz, +3dB / -3dB
S/N >80dB
Dynamic Range @ 1kHz >90dB
Crosstalk @ 1kHz >90dB
Distortion THD <0.1%
Latency 20ms
