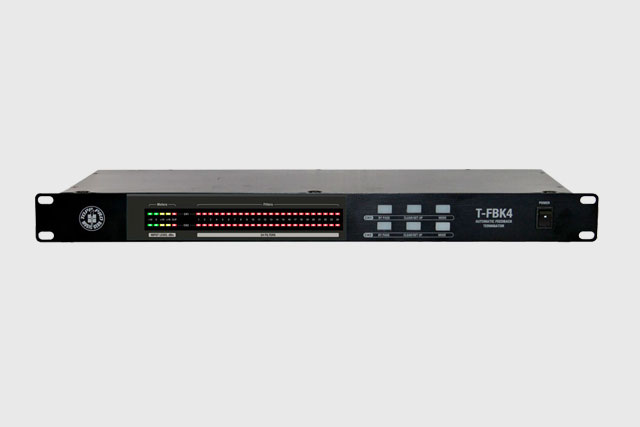

T-FBK4
Back
| Analog Inputs | |
| 2 x female XLR and 2 x 1/4" TRS | Electronically Balanced/ Unbalanced, RF filter suppressor |
| Input impedance | 30k ohm Balanced/ 15k ohm Unbalanced |
| Max Input line level | +20.5 dBu |
| Analog Outputs | |
| 2 x male XLR and 2 x 1/4" TRS | Electronically Balanced/ Unbalanced, RF filter suppressor |
| Output impedance | 100 Ohm Balanced/ 50 Ohm Unbalanced |
| Max Output level | +14.5 dBu |
| AID Performance | |
| Dynamic Range | 114 dB, A-weighted |
| AID Conversion | 24 bit |
| D/A Performance | |
| Dynamic Range 100 dB, A-weighted | 100 dB, A-weighted |
| D/A Conversion 24 bit | 24 bit |
| System Performance | |
| Sample Rate 48 kHz | 48 kHz |
| Dynamic Range | 100 dB, A-weighted |
| THD+N % | 0.01 %, 1kHz |
| S/N Ratio | 100 dB, A-weighted |
| Frequency Response | 20 Hz to 20 kHz, +/- 0.5 dB |
| Inter channel Crosstalk | 100 dB, A-weighted |
| Crosstalk input to output | 100 dB, A-weighted |
| Operating Voltage | 230 VAC 50/60 Hz 115 VAC 50/60 Hz |
| Power Consumption | 15W |
| Phvsical | |
| Dimension | 483 x 195 x 44 mm |
| Net Weight | 3.1kg |
