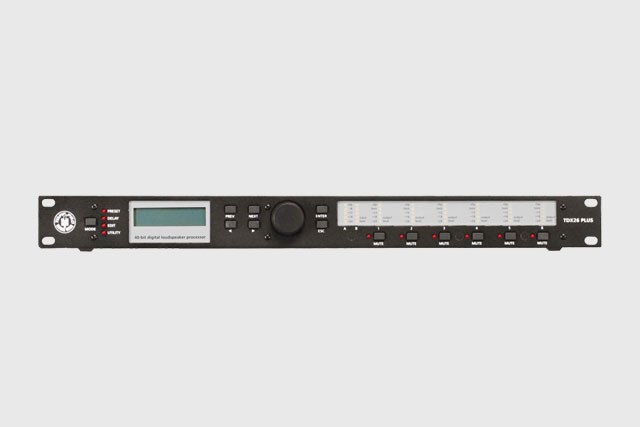

TDX-26 PLUS

Back
Hi-Res Manual
  • Digital Signal Processor
  • 24-bit sigma-delta converters / 48 kHz Sampling Rates
  • 1 Rack Unit
Model RT-DRIVE DLM-206 PROGRAMMABLE REALTIME DIGITAL SPEAKER MANAGEMENT SYSTEM
System Specification Frequency Response: 20 Hz~20 kHz, +/-0.5 dB
S/N Ratio: >115 dBu
Distortion (THD): <0.01% at 1 kHz (-10 dBv)
Cross-talk: <100 dB below full scale
Input Section Digital: AES/EBU
Type: Balanced XLR
Sensitivity: -20 dBu
Max. Input level: +20 dBu
Impedance: 1 M Ohms/Stereo; 500 k Ohms/Mono
Output Section Six Channels
Type: Balanced XLR
Max. Output level (bypass): +20 dBu
Impedance: <500 Ohms
Digital Processing 24-bit sigma-delta converters
48 kHz Sampling Rates
Bypass Bypass all the DSP function
Display 16 2 LCD Display for parameters setting and function select
7 8 LED for Input and Output Level Display
Control 9 buttons for different DSP functions selection
4/6 buttons for Outputs channels Muting
Power Supply AC90-264V, 50/60Hz
Dimension (WxDxH) 483 x 210 x 40 mm (19" x 8.3" x 1.6")
Weight 2.5 Kg (5.51 lb)
