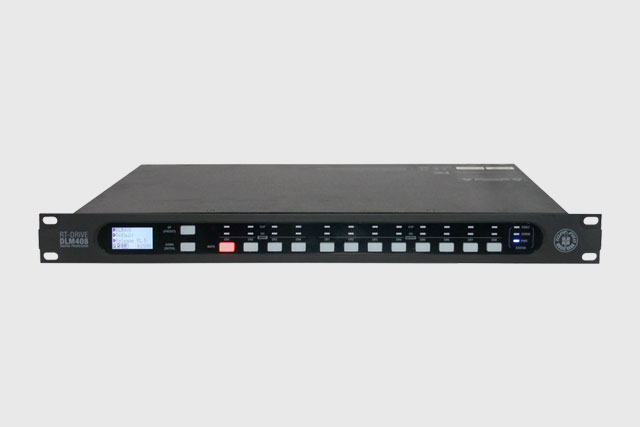

DLM-408
Back
| Input | Electronically balanced |
| Frequency Response to Main Output | 20Hz~20KHz at 0dBu +1/-3dB |
| Distortion (THD&N) to Main Output | <0.01% at 0dBu 1KHz |
| Outputs | . |
| Maximum Output Level | +20dBu |
| SNR (Signal to Noise Ratio) | 108dB |
| System Crosstalk | . |
| Input to Output | -90dBu |
| Noise Gate | . |
| Threshold Range | -84dBu -0dB |
| Attack time | 0.5mS~200mS |
| Release time | 10mS~1 S |
| EQ | . |
| Low (LowPass or LowShelf) | 21Hz~19.2KHz +/- 24dB |
| Low Mid | 21Hz~19.2KHz +/- 24dB |
| Low Mid | 20Hz~19.2KHz +/-24dB |
| High (HighPass or HighShelf) | 20Hz~19.2KHz +/-24dB |
| Impedances | 10Kohm |
| Operating free-air temperature range | 0~40℃ |
| Power Supply | 100-240V~ 50/60Hz - T1.6AL - 30W max |
