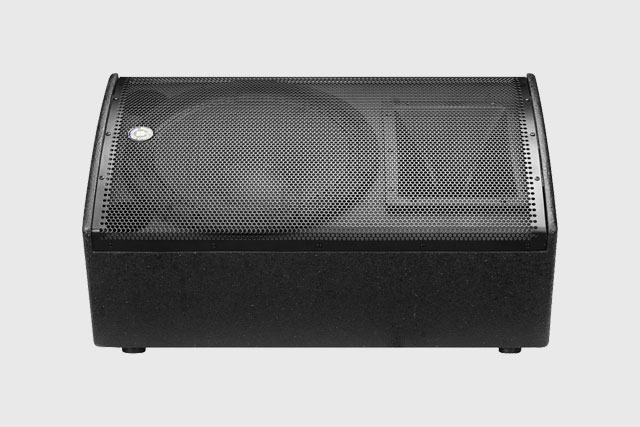

DRIVE 152M
Back
| Model | DRIVE 152M |
| System type | 2-Way Vented Box |
| Power Rated | LF/Full-range: 400W Cont. 800W Program / HF: 100W Cont. 200W Program |
| Crossover Modes | Bi-amp / Full-range, externally switchable |
| Crossover Frequency | 1.8 kHz |
| Nominal Impedance | Bi-amp / Full-range, externally switchable |
| Sensitivity (1W,1m) | 98dB |
| Maximum SPL 1mt | 124dB (Calculated) |
| Frequency Response | 38Hz ~ 20KHz (-10dB) |
| Low-Frequency Device | 15” 402mm - 3" Voice Coil |
| High-Frequency Device | 2" Compression Driver - 3” Voice Coil |
| HornCoverage (Hº x Vº) | 80º x 50º |
| High Frequency Protection | Electronic Dynamic Protection (both two modes) |
| Connectors | 2 x XLN4 (Pin1+; Pin1-; Pin2+; Pin2-) BI-AMP & Full Range Function |
| Enclosure | 18mm Plywood - Textured black paint - Black perforated steel - 12 x M8 Flying points |
| Dimension (cm) | 51.9 x 46.1 x 78.1 |
| Weight (kg) | 30 |
