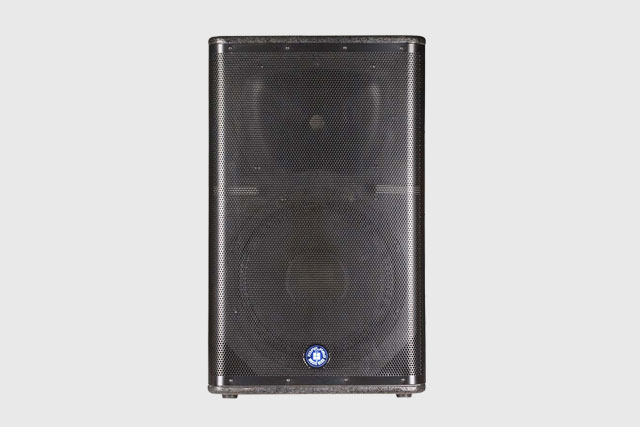

KS12A
Back
| Model Active | KS 12A |
| System Type | 2-Way Active Vented Speaker with DSP |
| Transducer Low | 12" Woofer, 3" voice coil |
| Transducer Driver | 1" Exit, 1.75" Compression Driver |
| Frequency Response (-10dB) | 50Hz-20KHz |
| Crossover Frequency | At 1.6KHz with 24db filter slope, Linkwitz-Riley Type |
| Max SPL | 128dB Max. |
| AMP Power Output | 1000W Continuous Class D Bi-AMP / (500W Low-High), 2000W Peak |
| Input Connector | Line / Mic Input Combo / Link XLR |
| Electronic Protections | Thermal / Convection-Fan / Overload / Dual Digital Limiter / Compressor |
| Power Supply | 115V 60Hz / 230V 50Hz Switchable |
| Enclosure Construction | Plywood cabinet, resistant black paint, metal grille, rubber foot,two plastic handle |
| Mounting | One metal standard pole-mount plus /10xM10 Flying Points |
| Dimension (cm) | 46.9 x 43.2 x 70.8 |
| Weight (kg) | 26.35 |
