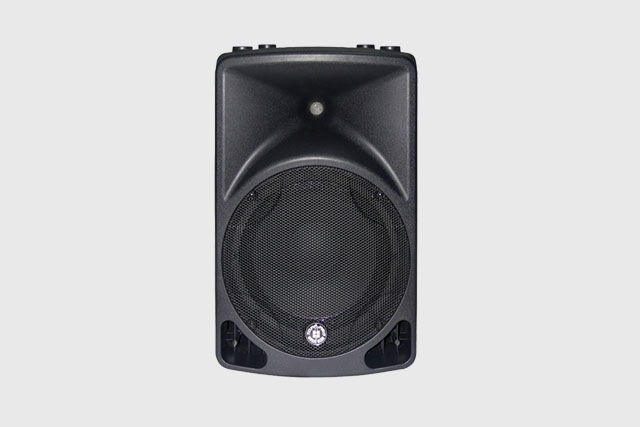

ARGO 12
Back
| Model Passive | ARGO 12 |
| System Type | 2-Way Vented Passive Speaker Cabinet |
| Continuous Power | 200 Watts |
| Peak Power | 800 Watts |
| Max SPL (1M) | 119dB Max |
| Frequency Response | 55Hz - 20kHz (-6dB) |
| Crossover Frequency | 2.5kHz |
| Protection | PTC Protection for HF |
| Impedance | 8 Ohms |
| Transducer Low | 12" Woofer, 2" Voice Coil |
| Transducer High | 1" Neodymium Drive, 1" Voice Coil |
| Connectors | 2 x 1/4" Jack + SPK4 (Pin 1+, Pin 1-) |
| Enclosure Construction | Plastic cabinet, Trapezoidal & Monitor shape, Metal grille, Rubber feet, 3 x Handles (Top and sides) |
| Mounting | 36mm standard pole-mount / 4 x M10 flying Points (Optional) |
| Dimensions (HxWxD) | 607 x 380 x 337mm |
| Net Weight | 13.75kg / 30.31Ibs |
| Volume | 4.71 CFT |
