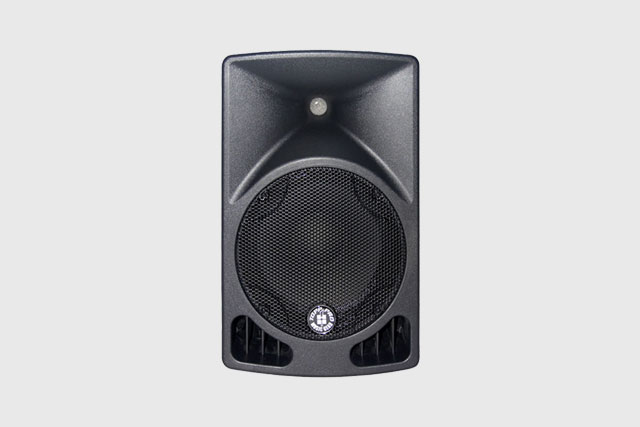

ARGO 10A
Back
| Model Active | TPS ARGO 10A |
| System Type | 2-Way Active Vented Speaker |
| Transducer Low | 10" Woofer, 1.5" voice coil |
| Transducer Driver | 1" Ferrite Tweeter, 1" Voice Coil |
| Horn Coverage Hº x Vº | 90 Hº x 45 Vº |
| Frequency Response | 65Hz-20KHz (-6dB) |
| Crossover Frequency | 2800Hz |
| Max SPL (1M) | 116dB Max. |
| Power system | Class D SMPS (Bi-AMP, LF 90W/RMS + HF 30W/RMS), 480W Peak |
| Connector | Line In & Link With XLR |
| External Controls | Volume Control / Power ON with Green LED / Clip Limiter with Red LED |
| Electronic Protections | Thermal / Overload / Analog limiter / Compressor |
| Power Supply | 100V-240V ~ 50/60Hz |
| Enclosure Construction | Plastic cabinet, Trapezoidal & Monitor shape, Metal grille, 1 x Handle-On Top |
| Mounting | 36mm standard pole-mount |
| Dimensions (HxWxD) | 460 x 285 x 265 mm |
| Net Weight | 6.92 kg / 15.26lbs |
