| Model |

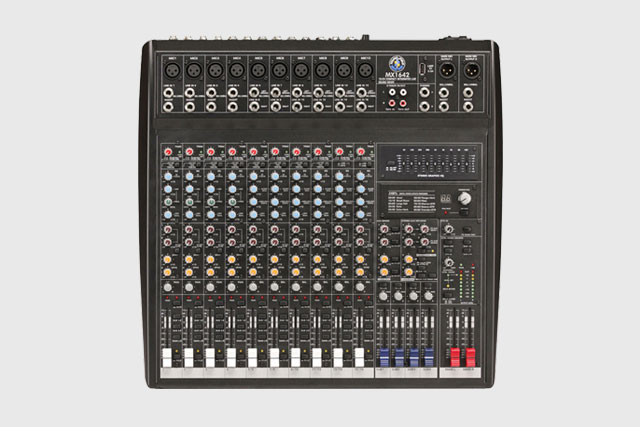

MX.1642 |
| Mono Input Channels |
10 Hz to 55 kHz, ±3 dB |
| Microphone Input |
0.005% at +4 dBu, 1 kHz |
| Frequency Response |
0 dB to 50 dB (MIC) |
| Distortion (THD & N) |
115 dB |
| Gain Range |
Electronically balanced |
| SNR (Signal to Noise Ratio) |
10 Hz to 55 kHz, ±3 dB |
| Line Input |
0.005% at +4 dBu, 1 kHz |
| Frequency Response |
+15 dBu to -35 dBu |
| Distortion (THD & N) |
|
| Sensitivity Range |
Balanced/Unbalanced |
| Stereo Input Channels |
10 Hz to 55 kHz, ±3 dB |
| Line Input |
0.005% at +4 dBu, 1 kHz |
| Frequency Response |
|
| Distortion (THD & N) |
1.4 kOhm |
| Impedances |
2.5 kOhm |
| Microphone Input |
10 kOhm or greater |
| Channel Insert Return |
1 kOhm |
| All Other Inputs |
120 Ohm |
| Tape Out |
|
| All Other Output |
±15 dB @12 kHz |
| Equalization |
±15 dB -frequency range 100 Hz~8 kHz |
| Hi-shelving |
±15 dB @ 3 kHz |
| Mid bell (Mono) |
±15 dB @ 500 Hz |
| Hi-Mid (Stereo) |
±15 dB @ 80 Hz |
| Mid-Low (Stereo) |
75 Hz, 18 dB/Oct. |
| Low-shelving |
±15 dB @ 80 Hz |
| Low Cut Filter |
Fader 0 dB, Channels Muted: -100 dBr (ref.: +4 dBu) |
| Main Mix Section |
|
| Noise (Bus Noise) |
Fader 0 dB, all input channels assigned and set to UNITY Gain: -90 dBr (ref.:+4 dBu) |
| Max Output |
| +22 dBu Balanced XLR |
| +22 dBu Unbalanced, 1/4" jacks |
|
| AUX Returns Gain Range |
8 to +15 dB |
| AUX Sends Max Out |
+22 dBu |
| Power Supply |
|
| Main Voltage |
| USA/Canada | 100-120 VAC~60 Hz |
| Europe | 210-240 VAC~ 50 Hz |
| U.K./Australia | 240 VAC~ 50 Hz |
|
| Power Consumption |
50 Watts |
| Fuse |
T1.25 AL |
| Main Connection |
Standard IEC Receptacle |
| Physical |
|
| Dimension (W D H) |
470.5mm x 400mm x 38/115 mm (18.52" x 15.75" x 1.49"/4.53") |
| Net Weight |
6.45 Kg (14.2 lb) |
| DSP Section |
|
| A/D & D/A Converters |
24-Bit |
| DSP Resolution |
24-Bit |
| Type of Effects |
| Echo, Echo+Verb, Tremolo, Plate, Leslie, Vocal, Rotary |
| Small Room, Flanger+Verb,Large Hall |
|
| Presets |
100 |
| Controls |
| 100-Position PRESET Selector |
| DSP MUTE SWITCH with PEAK LED Indicator |
|
