| Model |

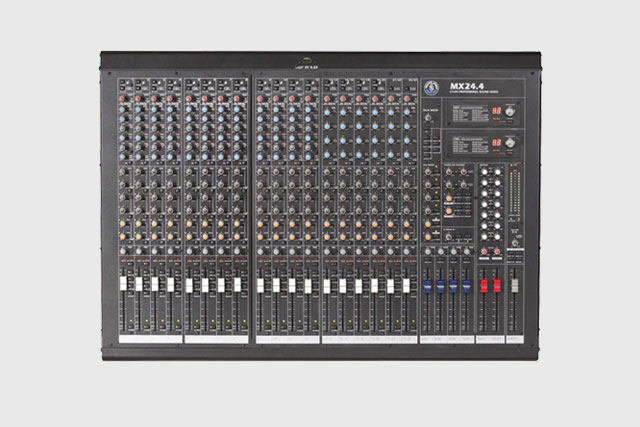

MX.24.4 Pro Live Mixers |
| Input |
|
| Input impedance |
| Mic 2 kOhm Balanced |
| Line 10 kOhm Balanced |
|
| Input gain |
| Mic continuosly variable from 0dB to +50dB |
| Line-Mono Channel continuosly variable from -15dB to +35dB |
| Line-Stereo Channel continuosly variable from -20dB to +20dB |
|
| Maximum input level |
| Mic +22dBu |
| Line (Mono Channel) +22dBu |
| Line (Stereo Channel) +22dBu |
|
| Insert send impedance |
120 ohm Unbalanced |
| Insert send Level/Max |
-10dBu/ +22dBu |
| Insert return impedance |
10 kOhm Unbalanced |
| Insert return Level/Max |
-10dBu/ +22dBu |
| CMR at 1 kHz Line (20Hz-20kHz) |
>60dB |
| Frequency response |
Mic to Mix 20Hz-20kHz +/-3dB |
| Signal/Noise Ratio (20Hz-20kHz) |
Mic EIN ref. 150 Ohms -117dBu |
| System Noise (20Hz-20kHz) |
|
| Summing Noise |
-90dBu (24 channels routed with faders down) |
| Line to Mix Noise |
-86dBu (24 channels routed at 0dB, pan center) |
| Distortion at 1 kHz |
| Mic to insert (+30dB unity gain, +20dBu output (<0.009%) |
| Mix to Mix (+30dB unity gain, +20dBu output) Type 0.03% |
|
| Crosstalk at 1 kHz |
| Channel to channel >-80dB |
| Mix to Mix >-80dB |
| Channel to Mix >-80dB |
|
| Fader Attenuation |
>100dB |
| Output (nominal signal level mic -50dBu to 0dBu - Line 0dBu) |
|
| Output impedance |
All line outputs 120 Ohm Balanced |
| Insert send impedance |
120 Ohm Unbalanced |
| Insert send level/Max |
+22dBu |
| Insert return impedance |
10 kOhm Unbalanced |
| Insert return level/max |
+22dBu |
| Maximum output level master outputs on XLR |
+28dBu |
| All outputs on 1/4" jacks |
+22dBu |
| Headphones |
+22dBu / 600 Ohm |
| Main Mix Section |
|
| Hi-Shelving |
+/-15dB @ 12kHz |
| MIS HI-bell (STEREO) |
+/-12dB @ 3kHz |
| MID-bell (MONO) |
+/-12dB frequency range 100Hz - 8kHz |
| MID LOW-bell (STEREO) |
+/-12dB @ 500Hz |
| Bass-shelving |
+/-15dB @ 80Hz |
| Hi Pass Filter Slope |
-18dB/Oct. @ 75Hz |
| Power Supply |
|
| USA / Canada |
100-120 VAC - 60Hz |
| Europe |
210-240 VAC - 50Hz |
| U.K. / Australia |
240 VAC - 50Hz |
| Dimensions |
107.8 x 61.8 x 26.6cm |
| Weight |
22.5kg |
