| Model |

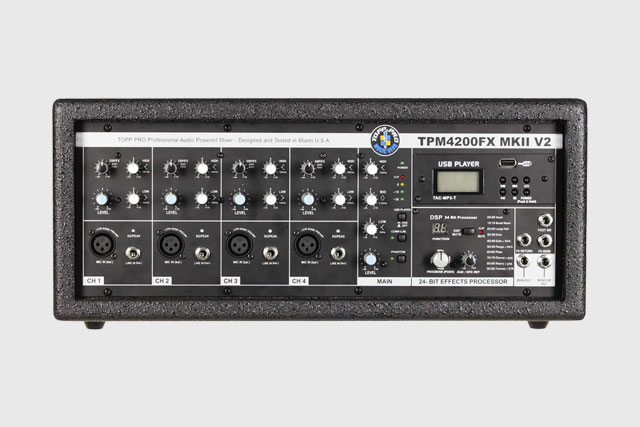

TPM4200FX MKII |
| Input Channels |
| Microphone input | Electronically Balanced, Discrete Input | | Frequency Response | 12Hz to 55kHz, +/-3dB | | Gain | 45dB | | Line Input | Electronically balanced | | SNR (signal tp noise ratio) | >75dB | | Gain | 45dB | |
| Impedance |
| Microphone Input | 1.5kOhm | | All other input | 10kOhm or greater | | Tape Out | 1kOhm | | All other output | 120Ohm | |
| THD |
0.5% at 10dB Below rated Output Power |
| Equalization |
| Hi shelving | +/-15dB@10kHz | | Low shelving | +/-15dB@100Hz | | Graphic EQ | 7-band, 4/3 octave | |
| DSP section |
| A/D and D/A converters | 24 bits | | DSP resolution | 24 bits | | Type of effects | Echo, Echo+Verb, Tremolo, Plate, Chorus, Vocal, Rotary, Small Room, Flanger+Verb and Large Hall | | Presets | 100 | | Controls | 100-position PRESET selector, CLIP LED,MUTE SWITCH with LED indicator | |
| Main Mix Section |
| Noise (Bus noise) | Fader 0dB, channels muted: -85dBr (ref: L+4dBu) | | Fader 0dB,all input channels assigned and set | | to UNITY gain: -81dBr (ref: +4dBu) | | Monitor Max Out | +22 dBu unbalanced, 1/4'jack | | FX sends max out | +22 dBu unbalanced, 1/4'jack | |
| Power Amplifier Section |
| Output power | 2 x 100W RMS at 1kHz,THD=1%,Load=4Ohm | | Frequency Response | 20Hz to 22kHz,+/-3dB | |
| Power Source |
115 Volts 60Hz - 230 Volts 50Hz Switchable |
| Physical |
| Dimensions | 466*280*191mm | | Net Weight | 7.8Kg | |
