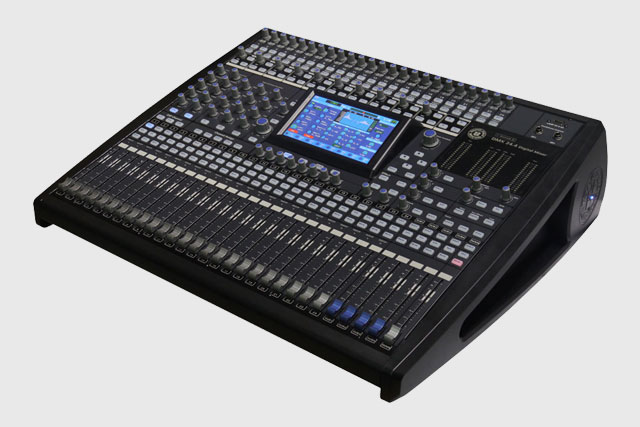

DMX.24-4
Back
| Model | DMX 24-4 |
| Microphone input | Electronically balanced |
| Frequency Response to direct Output | 20Hz~100KHz at 0dBu ±1.5dB |
| Frequency Response to Main Output(48K) | 20Hz~20KHz at 0dBu ±1.5dB |
| Frequency Response to Main Output(96K) | 20Hz~20KHz at 0dBu ±1.5dB |
| Distortion(THD&N) to direct Output | <0.0005% at 0dBu 1KHz |
| Distortion(THD&N) to Main Output(48K) | <0.01% at 0dBu 1KHz |
| Distortion(THD&N) to Main Output(96K) | <0.01% at 0dBu 1KHz |
| SNR(Signal to Noise Ratio) | 107dB |
| Maximum Input Level | +22dBu |
| Phantom Power(+/-3V) | +48VDC |
| Line input | Unbalanced |
| Frequency Response to direct Output | 20Hz~100KHz at 0dBu ±1.5dB |
| Frequency Response to Main Output(48K) | 20Hz~20KHz at 0dBu ±1.5dB |
| Frequency Response to Main Output(96K) | 20Hz~20KHz at 0dBu ±1.5dB |
| Distortion(THD&N) to direct Output | <0.0005% at 0dBu 1KHz |
| Distortion(THD&N) to Main Output(48K) | <0.01% at 0dBu 1KHz |
| Distortion(THD&N) to Main Output(96K) | <0.01% at 0dBu 1KHz |
| Gain | -15dBu~+35dBu |
| Maximum Input Level(Gain at 0dBu) | +20dBu |
| AUX1~2 input | Balanced(2 stereo pair) |
| Frequency Response to Main Output(48K) | 20Hz~20KHz at +4dBu ±1.5dB |
| Frequency Response to Main Output(96K) | 20Hz~20KHz at +4dBu ±1.5dB |
| Distortion(THD&N) to Main Output(48K) | <0.01% at 0dBu 1KHz |
| Distortion(THD&N) to Main Output(96K) | <0.01% at 0dBu 1KHz |
| Gain | -8 to +10dBu |
| Maximum Input Level | +22dBu |
| Tape L/R input | |
| Frequency Response to Main Output(48K) | 20Hz~20KHz at +4dBu ±1.5dB |
| Frequency Response to Main Output(96K) | 20Hz~20KHz at +4dBu ±1.5dB |
| Distortion(THD&N) to Main Output(48K) | <0.01% at 0dBu 1KHz |
| Distortion(THD&N) to Main Output(96K) | <0.01% at 0dBu 1KHz |
| Gain | -8 to +10dBu |
| Maximum Input Level | +22dBu |
| Talkback MIC | |
| Frequency Response to Main Output(48K) | 20Hz~20KHz at +4dBu ±1.5dB |
| Frequency Response to Main Output(96K) | 20Hz~20KHz at +4dBu ±1.5dB |
| Distortion(THD&N) to Main Output(48K) | <0.01% at 0dBu 1KHz |
| Distortion(THD&N) to Main Output(96K) | <0.01% at 0dBu 1KHz |
| Gain | -8 to +10dBu |
| Phantom Power(+/-3V) | +48VDC |
| Main outputs | |
| Maximum Output Level | +21dBu |
| AUX1~8 Outputs | |
| Maximum Output Level | +21dBu |
| SUB1~4 Outputs | |
| Maximum Output Level | +21dBu |
| Tape Outputs | |
| Maximum Output Level | +16dBu |
| Control Room Outputs | |
| Maximum Output Level | +20dBu |
| System Crosstalk | |
| Input to Output(at +4dBu 1KHz) | -83dBu |
| Adjacent Channels(at +4dBu 1KHz) | -82dBu |
| Noise(Bus noise) | -85dBu |
| Noise Gate | |
| Threshold Range | -84dBu - 0dB |
| Attack time | 0.5mS ~ 200mS |
| Relesae time | 5mS~2S |
| Compressor | |
| Threshold Range | -30dBu -+20dB |
| Attack time | 10mS ~ 150mS |
| Relesae time | 10mS~1S |
| Ratio | 1:1 to 24:1 |
| Gain | 0dBu - +24dB |
| EQ | |
| Low (LowPass or LowShelf) | 21Hz~19.2KHz +/- 24dB |
| Low Mid | 21Hz~19.2KHz +/- 24dB |
| High Mid | 21Hz~19.2KHz +/- 24dB |
| High(HighPass or HighShelf) | 21Hz~19.2KHz +/- 24dB |
| Digital Audio | |
| ADC Dynamic Range | 114dB |
| DAC Dynamic Range | 114dB |
| Internal Processor | 32-bit , floating point |
| ADC,DAC bit depth | 24bit |
| Impedances | |
| Microphone input | 1.4KO |
| Channel Isert return | 2.5KO |
| All other inputs | 10KO or greater |
| Tape out | 1KO |
| All other output | 120O |
