| Model |

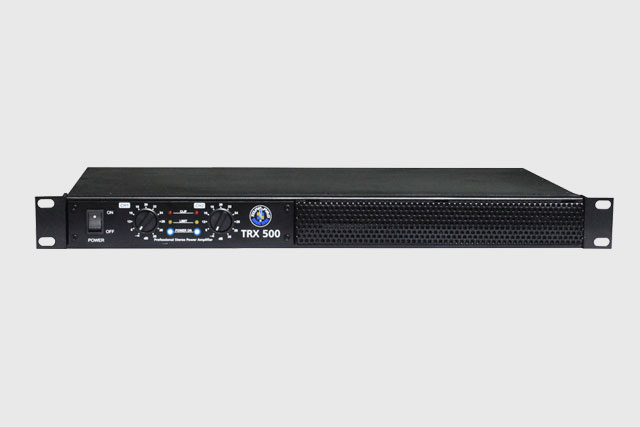

TRX 500 |
| Bridge Mode 8 Ohms |
| Continuous |
140w |
| Program / Peak |
200W / 280W |
|
| Stereo Mode 4 Ohms |
| Continuous |
70W x 2 |
| Program / Peak |
210W x 2 / 140W x 2 |
|
| Stereo Mode 8 Ohms |
| Continuous |
50W x 2 |
| Program / Peak |
60W x 2 / 100W x 2 |
|
| Dimension (cm) |
59.8 x 49.9 x 12.9 |
| Weight (kg) |
9.48 |
| Distortion: (SMPTE-IM): |
<0.05% |
| Frequency Response: |
20Hz- 20kHz ±0.1/3dB |
| Signal to Noise: |
20Hz- 20kHz 102dB |
| Voltage Gain: |
40x (32dB) |
| Input Sensitivity @ 4 ohms: |
1Vrms |
| Input clipping: |
10 Vrms (+22dB) |
| Input Impedance: |
10 Kohms unbalanced, 20 Kohms balanced, 56 (36dB) |
| Controls: |
Front: AC Switch, Ch1 - Ch2 Gain Knobs, Rear:Limiter, Bridge Selector |
| Indicators: (1 per Channel) |
Power-On: Blue LED, Protection: Green LED, Limiter : Yellow LED, Clip: Red LED, Parallel-input: Yellow LED |
| Connectors, each channel: |
Input: Terminal Block / Output: Screw-terminal Barrier Block |
| Cooling: |
Continuously variable speed fan, front-to-rear air flow |
| Load Protection: |
On / Off muting, overheat & short circuit protection |
| Power Supply: |
220-240V (110-120V) AC 50-60Hz |
