  • POWER:
  • 140W PROGRAM
  • TRANSDUCER LOW:
  • 6,5" Woofer, 1" Voice Coil
  • TRANSDUCER HIGH:
  • 1" Neodymium Tweeter

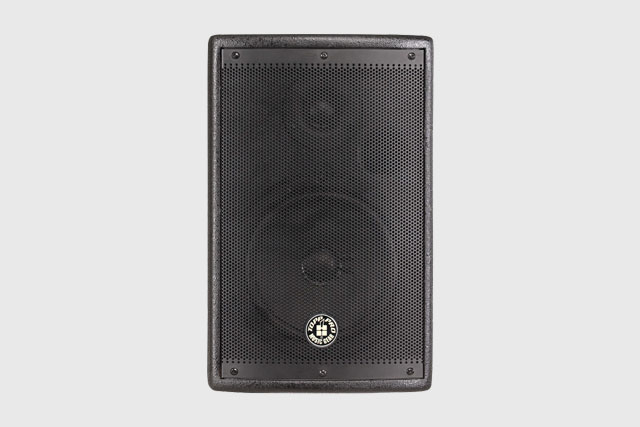

Model Active: TPS 16AP
System Type: 2-Way 6.5" Vented Active Speaker Cabinet
Power Handling: RMS: 70Watts / Program: 140Watts
Frequency Response: 75Hz-20KHz (-6dB)
Sensitivity: 110dB Max
X-over Frequency 6KHz@12dB/oct
X-over Frequency 6KHz@12dB/oct
Low Frequency: 6.5" (165mm) woofer / 1" Voice Coil
High Frequency: 1" Neodymium Tweeter
Connectors: MIC/LINE balanced input at -40/0dB (Combo Connector), AUX input at -10dB with RCA Connector, LINK Output at -40/0dB with XLR
Amplifier: Class D 70Wx2 (BTL)
Electronic Protections: Thermal / overload / analog limiter
Volume Control: Continuous, work only on MIC/LINE input
Power Supply: 110-120V / 220-240V~50/60Hz
Enclosure: Trapezoidal painted wood cabinet.metal grille
Fixing Point: 2 x M4 Standard (2 x Vertical side)
Dimensions (HxWxD): 12.52" (318mm) x 7.87" (200mm) x 7.93" (201.5mm)
Net Weight: 13.05 lbs / 4.6Kg
Volume: 1.19CFT
