TMA

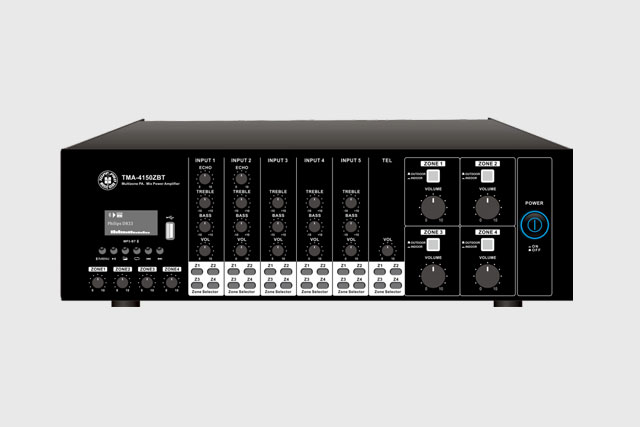

TMA-4150ZBT

Back
Hi-Res Manual
  • 5 Channel Mixer
  • / 4 Zones
  • Priority
  • for Mic-1
  • Output Constant Voltage:
  • 25V, 70V & 100V
Rated Output Power Sine Wave 1KHz, THD≤1%, LOAD 4Ω 150Wx4
Sensitivity / Impedances MIC (Balanced): -40dBv / AUX (Unbalanced): -10dBv / LINE (Balanced): -10dBv / TEL.: -10dBv
Max. Input Level MIC (Balanced): -20dBv / AUX (Unbalanced): +10dBv / LINE (Balanced): +15dBv / TEL.: +0dBv
S/N Ratio MIC: >70dB / AUX: >80dB / Line: >80dB / TEL.: >70dB
THD+N 1W / RMS ≤-1%
Tone Control BASS @ 100Hz ±10dB / TREBLE @ 1KHz ±10dB
Phantom Supply MIC (Balanced) 18V
Priority Sensitivity MIC 1 -60dBv / 3S
CMRR Balance input >60dB
Crosstalk 500-20KHz >-60dB
Noise All VR MAX <20mv
Phase All of inputs and outputs <±5
Rated Power Consumption Sine Wave 1KHz, THD≤1%, LOAD 4Ω
AC Power Supply 110-120V~, 220-240V~50/60Hz, 750W
