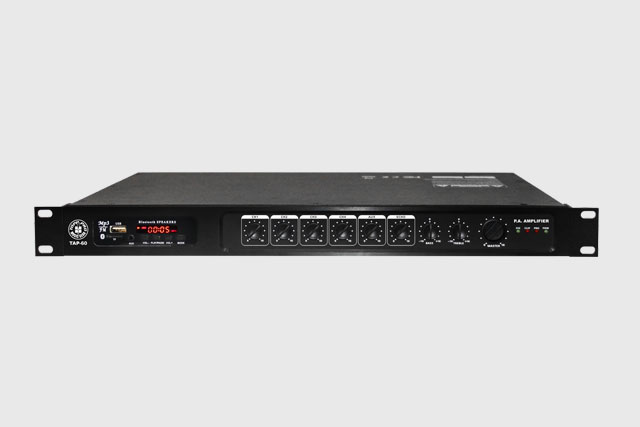

TAP-60

Back
Hi-Res Manual
  • Power output (1K / 70V / 100V)
  • 60W
  • Frequency response
  • 80Hz- 16KHz (±3dB)
  • Output
  • COM, 4 Ohms, 70V, 100V
Model TAP-60
Power supply AC 100-240V 50/60HZ / DC24V / class D amplifier
Power output (1K / 70V / 100V) 60W (RMS)
Frequency response 80Hz- 16KHz (±3dB)
T.H.D. 1 1%
S/N Ratio Mic: 65dB / Phantom: 65dB / Line: 75dB / AUX: 75dB
Input / Sensitivity Mic: -52dBV balanced / Phantom: -52dBV / 18V balanced / Line: -1 0dBV balanced / AUX: -1 0dBV balanced / Test/alarm: -10dBV balanced
Equalizer Controls BASS: ±10dB (at 100Hz), TREBLE: ±10dB (at 10KHz)
lndicators Power: Green led / Signal: Green led / Pro: Red led / Clip: Red led
Output COM, 4 Ohms, 70V, 100V
Controls 4 input volume controls, 1 Aux volume control / 2 Treble / Bass controls, 1 Master volume control / 4 Mic / Phantom / Line selector switch / 1 Mic / Priority controls / MP3 player with SD/USB interface / ECHO function
Dimensiones (AlxAnxP) 483 x 281 x 44mm
Peso Neto 4.1Kg
