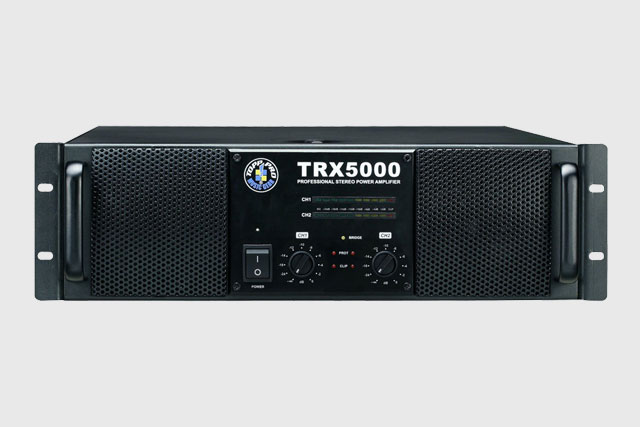

TRX 5000
Back
| Model | TRX 5000 |
| Stereo Mode | |
| 8O/ 1KHz /1% THD Continuous | 1160W*2 |
| 4O/ 1KHz /1% THD Continuous | 1900W*2 |
| 2O/EIA 1KHz /1% THD Peaks | 5100W*2 |
| Bridge Mono Mode | |
| 8O/ 1KHz /1% THD Continuous | 3860W |
| 4O/ 1KHz /1% THD Peaks | 9000W |
| Max. Continuous Voltage Swing THD=1%, 1KHz | 107V |
| Voltage Gain,ref.1KHz | 38dB |
| Max. Power Consumption output power @4 ohms | 6000W |
| Dimension (cm) | 59.1 x 56.6 x 21.9 |
| Weight (kg) | 42.25 |
| Single to Noise Ratio A-weighted: | > 105dB |
| Residual Noise, A-weighted: | < -65dBu |
| Input Sensitivity: | 1.1V |
| Total Harmonic Distortion: | < 0.05% |
| Crosstalk ref.1KHz at rated output power: | > 60dB |
| Frequency Response: | 20Hz~20kHz ±1dB at 10dB below rated output power |
| Input Impedance: | 10kohms unbalanced, 20kohms balance |
| Damping Factor, 1kHz: | > 500 at 8ohms |
| Slew Rate: | 40V/µS |
| Power Requirements: | 100V, 120V, 220V, 230V, 240V, 50/60Hz (factory configured) |
| Protections: | Turn-on delay, Over-heat, Short-circuit, DC, over-current, mismatched loads |
