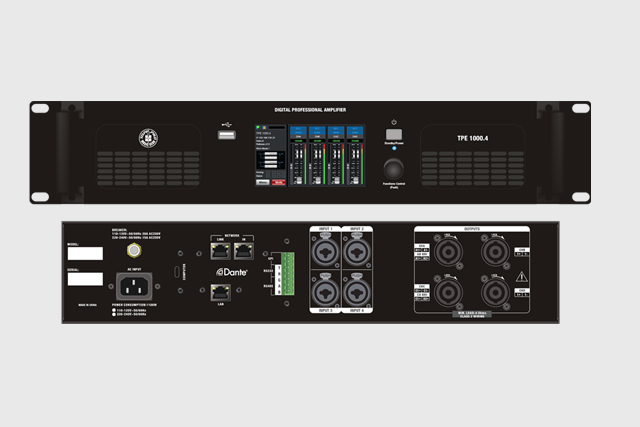

TPE1000.4
Back
| Power Specifications (tolerance +/-5%) | |
| Stereo Mode (Both Channels Drive) | 4 Ohms (RMS): 1000W x 4 / 8 Ohms (RMS): 500W x 2 |
| Bridge Mono Mode | 8 Ohms (RMS): 2000W x 2 |
| Input Sensitivity (Limit Off) | 0.9-1.1V (0+/-1dBv) |
| Input Impedance | 20k Ohms balanced or 10k Ohms unbalanced |
| Frequency Response (at 10dB Rated Output Power 8ohms) | 20Hz~20KHz (+0/-1dB) |
| THD+N (Ref. 1K 1/8 Rated Power,A-Weighted) | <0.05% |
| S/N rate (Ref. Rated Power, A-Weighted) | >95dB |
| Crosstalk (Below Rated Power) | >70dB |
| Power/Output Circuitry | Switching Power Class D |
| Protection | Disconnect, mute, overload voltage, short circuit, open circuit, overheating, ultrasonic and RF protection |
| Control | Potentiometer |
| Display | LED display |
| Connector | Input: Dynamic balanced XLR / Output: Speakon sockets |
| Power supply | 110V-120V / 220V-240V AC 50/60Hz ± 10% |
| Size (WxHxL) | 483 (D) x 88.1 (H) x 447.9 (W) |
| Weight | 10.77kg |
