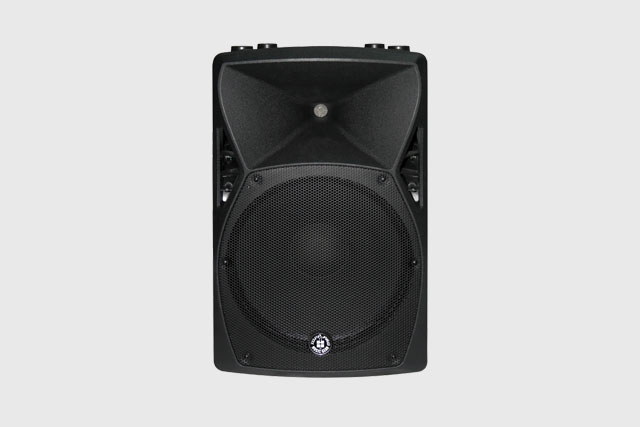

AVANTI 15A MKII

Back
Hi-Res Manual
  • 500W PEAK POWER
  • 15" Woofer - 1" Neodymium Driver
  • Built in MP3 USB / Wireless Player
Model Active AVANTI 15A MKII
System Type 2-Way Active Vented Speaker
Transducer Low 15" Woofer, 2" voice coil
Transducer Driver 1" NEO Driver, 1" Voice Coil
Horn Coverage H° x V° 90°H x 45°V
Frequency Response (-6dB) 55Hz - 20KHz
Crossover Frequency 2.5KHz
Max SPL 117dB Max.
Power Rating 240W (PROGRAM) / 500W (PEAK)
USB Player With USB & Micro SD CARD
Connector INPUT1-Mic with XLR x 1 & 6.3 Jack x 1 / INPUT 2-Line with XLR x 1 & 6.3 jack x 1 & 3.5 jack x 1
External Controls Input 1&2 and Master Volume Control / 2 Band EQ - High&Low / Power ON with Green LED / Clip Limiter with Red LED
Electronic Protections Thermal / Overload / Analog limiter / Compressor
Power Supply 110V / 240V Switchable
Enclosure Construction Plastic cabinet, Trapezoidal & Monitor shape, Metal grille, Rubber foot, 3 x Handles (both side and Top)
Mounting 36mm standard pole-mount / M10 x 4 pcs Flying Points (Optional)
Dimensions (HxWxD) 632x386x366mm
Net Weight 14.37 kg
Volume 5.35CFT
