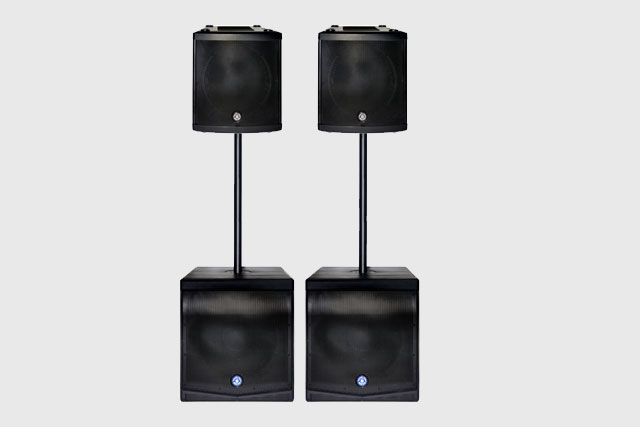

CX12A SYSTEM

Back
  • HD Coaxial System
  • 12" Active Speaker Cabinet with DSP
  • 12" Active Subwoofer Speaker Cabinet with DSP
  • 8000W TOTAL SYSTEM PROGRAM POWER
  • 131dB TOTAL SYSTEM
System configuration 12" Active Speaker Cabinet with DSP
System configuration 12" Active Subwoofer Speaker Cabinet with DSP
System configuration 12" Active Speaker Cabinet with DSP
Power Rating 2000W (PROGRAM) / 4000W (PEAK)
Power Rating 2000W (PROGRAM) / 4000W (PEAK)
Power Rating 2000W (PROGRAM) / 4000W (PEAK)
Power AMP Class-D Power AMP; Switch mode
Power AMP Class-D Power AMP, Switch mode
Power AMP Class-D Power AMP; Switch mode
Frequency Response (-10dB) 60Hz - 20KHz
Frequency Response (-10dB) 35Hz - 200Hz
Frequency Response (-10dB) 60Hz - 20KHz
Maximum SPL @ 1m calculated 31dB Peak / 128dB Continuous
Maximum SPL @ 1m calculated 128dB (form driver sensitivity and amplifier power)
Maximum SPL @ 1m calculated 31dB Peak / 128dB Continuous
Coverage 90º
Transducer Low 12" Woofer, 3" voice coil
Coverage 90º
Transducer Low 8" Woofer, 1,35" VC
Active Crossover 60Hz - 120Hz DSP Processor
Transducer Low 8" Woofer, 1,35" VC
Transducer High 1" Exit Compression Driver, 1.35" Voice Coil
Connectors Input 1 with Combo / Input 2 with Combo / Output 1 & 2 with Male XLR balanced / High Pass and Link with output mode Key switch
Transducer High 1" Exit Compression Driver, 1.35" Voice Coil
Active Crossover At 1,6KHz with 24dB filter slope
Input Level Line 0dBu
Active Crossover At 1,6KHz with 24dB filter slope
Connectors Input 1 (Line/Mic) - Combo / Input 2 (Line/Mic) - Combo / Thru - XLR balanced
External Control Volume Control / Phase Switch / Power ON with Green LED / Clip Limiter with Red LED / DSP Preset
Connectors Input 1 (Line/Mic) - Combo / Input 2 (Line/Mic) - Combo / Thru - XLR balanced
Input Level Line 0dBu
DSP Modes BOOSTED / EXTENDED / NORMAL
Input Level Line 0dBu
External Control Volume Control / Power ON with Green LED / Clip Limiter with Red LED / Front LED Switch / DSP Preset/ Bluetooth Volume
Electronic Protections Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
External Control Volume Control / Power ON with Green LED / Clip Limiter with Red LED / Front LED Switch / DSP Preset/ Bluetooth Volume
DSP Modes LIVE / MUSIC / SPEECH / MONITOR
Power Supply 100-120VAC, 50-60Hz / 220-240VAC, 50-60Hz, in Switch mode
DSP Modes LIVE / MUSIC / SPEECH / MONITOR
Wireless Connectivity Bluetooth 4.2 (Single / Stereo Link)
Enclosure Construction Extremely durable 15mm poplar plywood cabinet, resistant black paint, metal grille and rubber feet
Wireless Connectivity Bluetooth 4.2 (Single / Stereo Link)
Electronic Protections Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
Mounting One standard metal pole-mount plus two handles
Electronic Protections Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
Power Supply 100-120VAC, 50-60Hz / 220-240VAC, 50-60Hz, in Switch mode
Dimensions (HxWxD) 439 x 417 x 512 mm / 17.3" x 16.4" x 20.2"
Power Supply 100-120VAC, 50-60Hz / 220-240VAC, 50-60Hz, in Switch mode
EnclosureConstruction Extremely durable 15mm poplar plywood cabinet, resistant black paint, metal grille and rubber feet
Net Weight 23.93 Kg / 52.76 lbs
EnclosureConstruction Extremely durable 15mm poplar plywood cabinet, resistant black paint, metal grille and rubber feet
Mounting One standard pole-mount plus one plastic handle
Mounting One standard pole-mount plus one plastic handle
Dimensions (HxWxD) 414 x 388 x 365 mm / 16.3" x 15.3" x 14.4"
Dimensions (HxWxD) 414 x 388 x 365 mm / 16.3" x 15.3" x 14.4"
Net Weight 16.56 Kg / 36.51 lbs
Net Weight 16.56 Kg / 36.51 lbs
System configuration 12" Active Subwoofer Speaker Cabinet with DSP
Power Rating 2000W (PROGRAM) / 4000W (PEAK)
Power AMP Class-D Power AMP, Switch mode
Frequency Response (-10dB) 35Hz - 200Hz
Maximum SPL @ 1m calculated 128dB (form driver sensitivity and amplifier power)
Transducer Low 12" Woofer, 3" voice coil
Active Crossover 60Hz - 120Hz DSP Processor
Connectors Input 1 with Combo / Input 2 with Combo / Output 1 & 2 with Male XLR balanced / High Pass and Link with output mode Key switch
Input Level Line 0dBu
External Control Volume Control / Phase Switch / Power ON with Green LED / Clip Limiter with Red LED / DSP Preset
DSP Modes BOOSTED / EXTENDED / NORMAL
Electronic Protections Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
Power Supply 100-120VAC, 50-60Hz / 220-240VAC, 50-60Hz, in Switch mode
Enclosure Construction Extremely durable 15mm poplar plywood cabinet, resistant black paint, metal grille and rubber feet
Mounting One standard metal pole-mount plus two handles
Dimensions (HxWxD) 439 x 417 x 512 mm / 17.3" x 16.4" x 20.2"
Net Weight 23.93 Kg / 52.76 lbs
