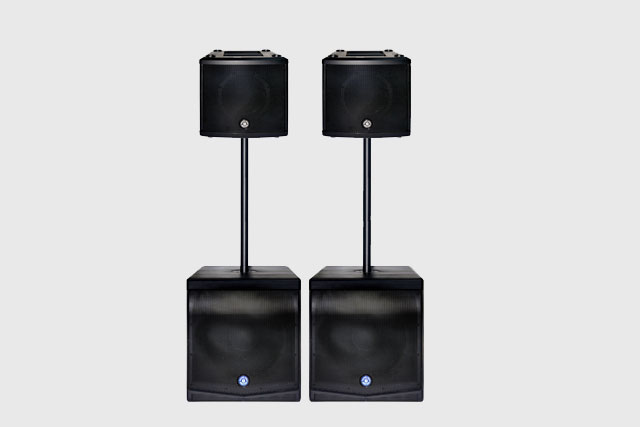

CX8A SYSTEM

Back
  • HD Coaxial System
  • 8" Active Speaker Cabinet with DSP
  • 12" Active Subwoofer Speaker Cabinet with DSP
  • 6200W TOTAL SYSTEM PROGRAM POWER
  • 129dB TOTAL SYSTEM
System configuration 8" Active Speaker Cabinet with DSP
Power Rating 1100W (PROGRAM) / 2200W (PEAK)
Power AMP Class-D Power AMP; Switch mode
Frequency Response (-10dB) 60Hz - 20KHz
Maximum SPL @ 1m calculated 129dB Peak / 126dB Continuous
Coverage 90ยบ
Transducer Low 8" Woofer
Transducer High 1" Exit Compression Driver, 1.35" Voice Coil
Active Crossover At 2KHz with 24dB filter slope
Connectors Input 1 (Line/Mic) - Combo / Input 2 (Line/Mic) - Combo / Thru - XLR balanced
Input Level Line 0dBu
External Control Volume Control / Power ON with Green LED / Clip Limiter with Red LED / Front LED Switch / DSP Preset/ Bluetooth Volume
DSP Modes LIVE / MUSIC / SPEECH / MONITOR
Wireless Connectivity Bluetooth 4.2 (Single / Stereo Link)
Electronic Protections Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
Power Supply 100-120VAC, 50-60Hz / 220-240VAC, 50-60Hz, in Switch mode
EnclosureConstruction Extremely durable 12mm poplar plywood cabinet, resistant black paint, metal grille and rubber feet
Mounting One standard pole-mount plus one plastic handle
Dimensions (HxWxD) 323 x 328 x 319 mm / I 2.68" x 12.91" x 12.6"
Net Weight 15 Kg / 33.1 lbs
System configuration 12" Active Subwoofer Speaker Cabinet with DSP
Power Rating 2000W (PROGRAM) / 4000W (PEAK)
Power AMP Class-D Power AMP, Switch mode
Frequency Response (-10dB) 35Hz - 200Hz
Maximum SPL @ 1m calculated 128dB (form driver sensitivity and amplifier power)
Transducer Low 12" Woofer, 3" voice coil
Active Crossover 60Hz - 120Hz DSP Processor
Connectors Input 1 with Combo / Input 2 with Combo / Output 1 & 2 with Male XLR balanced / High Pass and Link with output mode Key switch
Input Level Line 0dBu
External Control Volume Control / Phase Switch / Power ON with Green LED / Clip Limiter with Red LED / DSP Preset
DSP Modes BOOSTED / EXTENDED / NORMAL
Electronic Protections Thermal / Convection-Fan / Overload / Digital Lim. / Compressor
Power Supply 100-120VAC, 50-60Hz / 220-240VAC, 50-60Hz, in Switch mode
Enclosure Construction Extremely durable 15mm poplar plywood cabinet, resistant black paint, metal grille and rubber feet
Mounting One standard metal pole-mount plus two handles
Dimensions (HxWxD) 439 x 417 x 512 mm / 17.3" x 16.4" x 20.2"
Net Weight 23.93 Kg / 52.76 lbs
